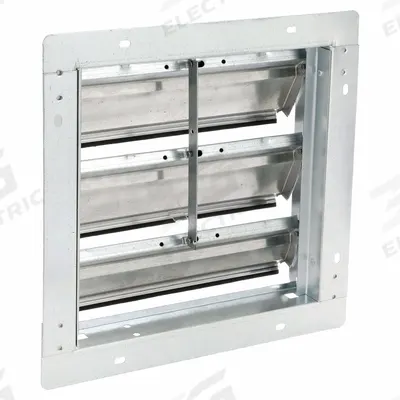

Dayton 15"H-W 5.75"L Alu Wall Backdraft Dampr: For 12 in Fan, Single Panel, 15 in H - Wall-Mount Backdraft Dampers
DaytonWall-Mount Backdraft Dampers

Dayton 15"H-W 5.75"L Alu Wall Backdraft Dampr: For 12 in Fan, Single Panel, 15 in H

The Dayton 1C742 is a wall-mount backdraft damper designed for use with a 12-inch fan. It features a single-panel, flat blade construction with a horizontal airflow direction and vertical mounting position. The unit…

SKU 3G-OTH-75755

Brand
Dayton
Item
15"H-W 5.75"L Alu Wall Backdraft Dampr: For 12 in Fan, Single Panel, 15 in H
Category
Wall-Mount Backdraft Dampers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
1C742
Type
Single Panel, 15 in W
D
2 1/2 in
H
15 in
Blade Type
Flat Blade
Airflow Direction
Horizontal
Mounting Position
Vertical
Maximum Air Velocity
2500 fpm
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 1C742 is a wall-mount backdraft damper designed for use with a 12-inch fan. It features a single-panel, flat blade construction with a horizontal airflow direction and vertical mounting position. The unit measures 15 inches in height, 15 inches in width, and 2.5 inches in depth, with a maximum air velocity of 2500 fpm.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the Dayton 1C742 backdraft damper used for?

The Dayton 1C742 is a wall-mount backdraft damper designed to prevent reverse airflow when a 12-inch fan is off. It is commonly installed in commercial or industrial ventilation systems where horizontal airflow and vertical mounting are required, ensuring one-way air movement and system efficiency.

What are the specifications of the Dayton 1C742 damper?

The Dayton 1C742 is a single-panel, flat blade backdraft damper measuring 15 inches high, 15 inches wide, and 2.5 inches deep. It has a maximum air velocity of 2500 fpm, horizontal airflow direction, and vertical mounting position. It is designed for use with a 12-inch fan.

Where to buy the Dayton 1C742 damper worldwide?

3G Electric supplies the Dayton 1C742 backdraft damper worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we source and deliver this part globally.

How to install the Dayton 1C742 backdraft damper?

Install the Dayton 1C742 vertically with the airflow arrow pointing in the intended direction. Secure the damper to the wall opening using appropriate fasteners, ensuring the flat blades swing freely. For best performance, verify the damper is level and the hinge pins are lubricated periodically.
