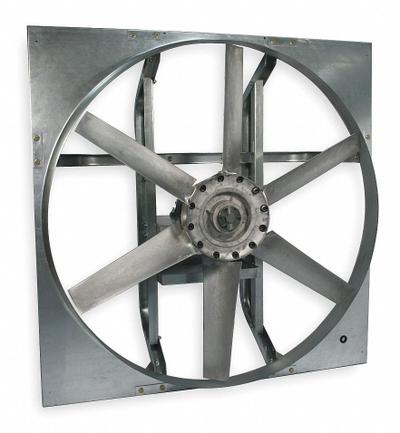

Dayton Exhaust Fan: 30 in Blade - Belt-Drive Panel Exhaust Fans without Drive Package
DaytonBelt-Drive Panel Exhaust Fans without Drive Package

Dayton Exhaust Fan: 30 in Blade

The Dayton 1AHA9 is an unassembled belt-drive panel exhaust fan with a 30-inch cast aluminum blade, designed for air flows from 7,888 cfm to 14,990 cfm depending on the motor. It features a zinc-plated steel frame…

SKU 3G-OTH-83737

Brand
Dayton
Item
Exhaust Fan: 30 in Blade
Category
Belt-Drive Panel Exhaust Fans without Drive Package
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
1AHA9
Type
For 7,888 cfm to 14,990 cfm Air Flow (Dependent on Motor)
Assembled
Unassembled
Guard Type
None
Frame Finish
Zinc-Plated
Blade Material
Cast Aluminum
Frame Material
Steel
Guard Type Subheads
Without Intake Guards
Method of Construction
Cast
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 1AHA9 is an unassembled belt-drive panel exhaust fan with a 30-inch cast aluminum blade, designed for air flows from 7,888 cfm to 14,990 cfm depending on the motor. It features a zinc-plated steel frame and is constructed using a cast method. This unit is supplied without intake guards.

Used in

Common applications for Dayton
HVAC ventilation — DAYTON centrifugal upblast roof exhaust fans (SKU 7M7U3) for kitchen exhaust systems
Mechanical power transmission — DAYTON HTD timing pulleys (SKU 404GV0) for conveyor belt drives
Process water handling — DAYTON self-priming centrifugal pumps (SKU 2ZXT4) for dewatering or transfer
Roofing and building services — DAYTON fixed ventilated roof curbs (SKU 4HX59) for filtered supply fan installations
Material handling — DAYTON latch assemblies (SKU 2KEN4) for electric chain hoist hook safety
Industrial air movement — DAYTON downblast roof exhaust fans (SKU 3HFL9) for clean air exhaust in manufacturing plants

Dayton Products

3G Electric supplies Dayton belt-drive panel exhaust fans without drive package. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
