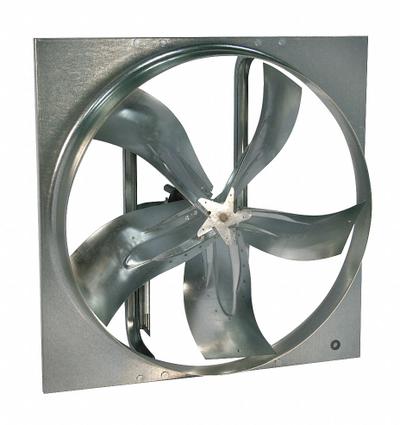

Dayton Exhaust Fan: 48 in Blade - Belt-Drive Panel Exhaust Fans without Drive Package
DaytonBelt-Drive Panel Exhaust Fans without Drive Package

Dayton Exhaust Fan: 48 in Blade

The Dayton 1AHA5 is an unassembled belt-drive panel exhaust fan with a 48-inch blade, designed for air flows from 22,617 cfm to 32,605 cfm depending on the motor. It features a stamped steel frame with a zinc-plated…

SKU 3G-OTH-83802

Brand
Dayton
Item
Exhaust Fan: 48 in Blade
Category
Belt-Drive Panel Exhaust Fans without Drive Package
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
1AHA5
Type
For 22,617 cfm to 32,605 cfm Air Flow (Dependent on Motor)
Assembled
Unassembled
Guard Type
None
Frame Finish
Zinc-Plated
Frame Material
Steel
Guard Type Subheads
Without Intake Guards
Method of Construction
Stamped
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 1AHA5 is an unassembled belt-drive panel exhaust fan with a 48-inch blade, designed for air flows from 22,617 cfm to 32,605 cfm depending on the motor. It features a stamped steel frame with a zinc-plated finish and is supplied without intake guards.
