Fantini CosmiSwitches & Thermostats

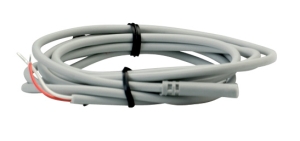

Fantini Cosmi Probe for thermostat/hygrostat LS130

The Fantini Cosmi LS130 is a thermostat/hygrostat probe for HVAC and climate control systems. It delivers ±1.5°C accuracy at 25°C with a 200 cm cable and IP67 protection rating, operating across -40 to +105°C. Ideal…

SKU 3G-CBM-03664

Also listed as: FAN 24062 · FAN-24062

Brand

Fantini Cosmi

Item

Probe for thermostat/hygrostat LS130

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

Fantini Cosmi

accuracy

±1.5°C at 25°C

probe tip

Ø 6x34 mm

conductors

2x0.4 mm²

sensor type

NTC10K

cable length cm

200

protection rating

IP67

temperature range

-40 to +105°C

Datasheet Content

FAN24054 à 62
                          Sonde LS pour thermostats et hygrostat.




         LS120-LS123               LS130                     LS140                     LS150                          LS160A
         (PTC1000)                 (NTC10K)                  (PT100)                   (termocoup.J)                  (UR%)




SONDE POUR THERMOSTAT
Type                  Temp.      Precision                 Tip           Protection    Conductors                Cable
                      range                                               degree                        temperature    lenght
                       °C           °K                     mm                              mm²              °C           cm
LS120 (PTC1000)      -40 ÷105   ± 1,5 a 25°C              Ø 6x34           IP67            2x0,4         -40 ÷ 105        200 cm
LS123 (PTC1000)      -40 ÷105   ± 1,5 a 25°C              Ø 6x34           IP67       2x0,4 + display    -40 ÷ 105        200 cm
LS140 (PT100)        0 ÷ 400    ± 0,3 a 0°C     Ø 6x160 steel AISI 316     IP65            3x0,2          0 ÷ 400         100 cm
LS150 (termocoup.J) 0 ÷ 450        ±2,5         Ø 6x160 steel AISI 316     IP65            2x0,5          0 ÷ 450         300 cm
LS130 (NTC10K)       -40 ÷105   ± 1,5 a 25°C              Ø 6x34           IP67            2x0,4         -40 ÷ 105        200 cm




SONDE POUR HYGROSTAT
Type                  UR%                       UR%                        Dimensons                        Protection
                      range                   Precision                                                      degree
                                                                               mm
LS160A               0 ÷100%             <± 0,7 (0÷100%UR)                 110 x 75 x 53                       IP65

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Fantini Cosmi Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

Where can I order the Fantini Cosmi LS130 probe in the Philippines?

3G Electric Philippines supplies the Fantini Cosmi LS130 probe with delivery to Manila and Quezon City. We handle all logistics, customs documentation, and Bureau of Customs filing. Contact us for pricing, availability, and lead times on this HVAC thermostat probe.

What is the lead time for the LS130 thermostat probe?

Lead time depends on current stock status. The Fantini Cosmi LS130 is available to order through 3G Electric Philippines. Contact our team for specific delivery schedules to your location in the Philippines.

What temperature range does the Fantini Cosmi LS130 probe operate in?

The LS130 operates across -40 to +105°C with ±1.5°C accuracy at 25°C. The probe tip is Ø 6x34 mm with a 200 cm cable and IP67 protection, ideal for embedded HVAC and climate control applications in commercial installations.

Used in

Common applications for Fantini Cosmi

Oil-fired boiler burner control — Fantini Cosmi ambient thermostat C16I and pressure switch B12HNY for fuel-pump lockout and room-temperature feedback.

Pneumatic compressor load management — B12DN or B13CN pressure switch for unload-valve control and tank cutout in 5–150 bar air systems.

Hydronic heating-plant commissioning — B12GNY and B12CRNY switches for pump-discharge and low-pressure monitoring in chilled-water and hot-water loops.

Industrial steam and hot-water vessel safety — B12HNY high-pressure switch and A96D/A95B level regulators for water-level and overpressure interlocks.

Thermal-storage tank management — A95B and A96D liquid-level regulators with 15-meter cable reach for boiler-makeup and expansion-tank applications.

Portable pump and pressure-test equipment — B12DN with adjustable differential for mobile hydraulic-circuit monitoring and component proof-pressure validation.
