ELVSolenoid Valves

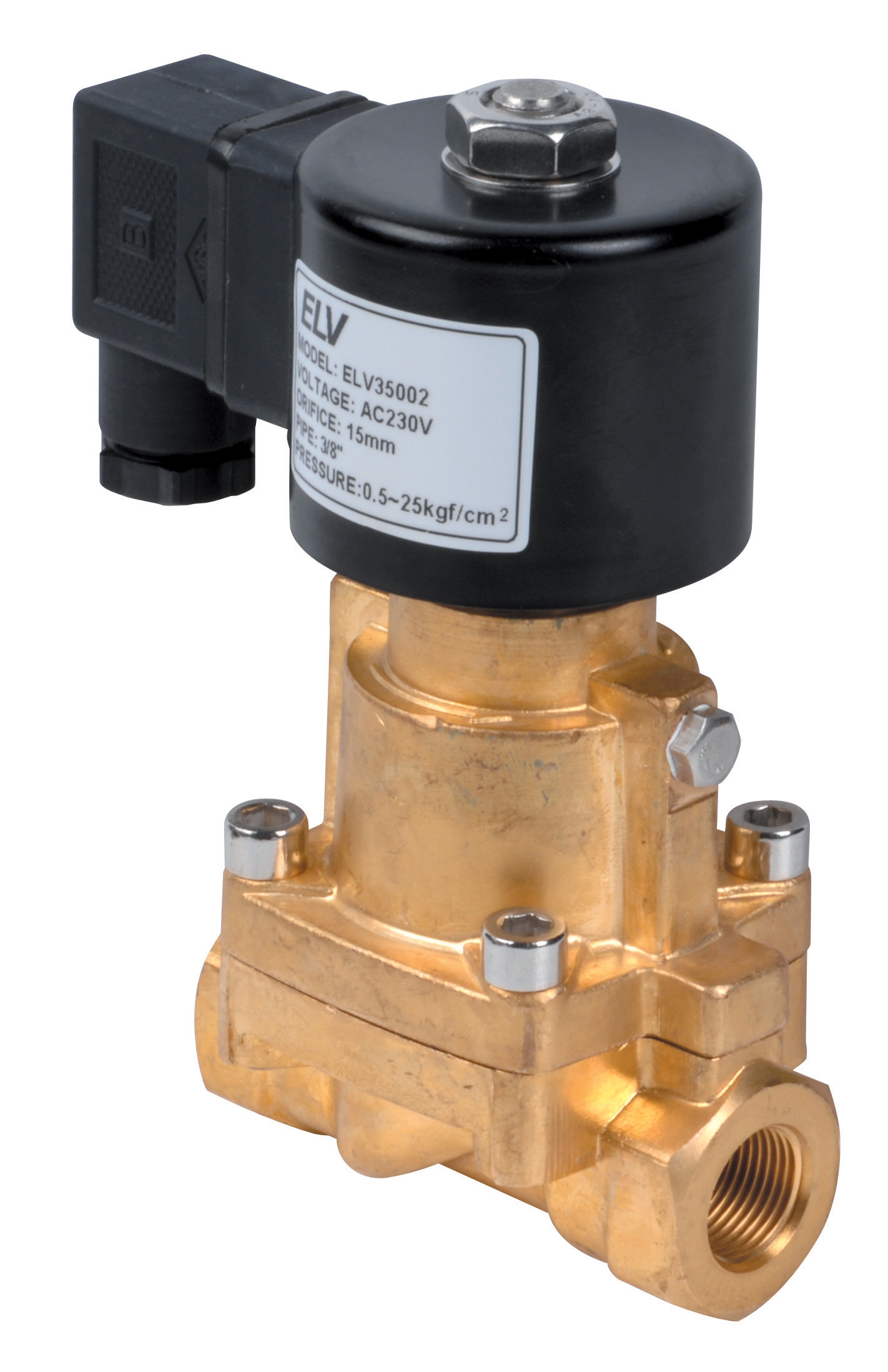

ELV Steam solenoid valve D 1/2

ELV steam solenoid valve DN 1/2 controls steam flow in industrial heating and process applications. Rated for 0.5–10 bar operating pressure with 25 bar maximum differential pressure and 4.5 Cv flow capacity. Suitable…

SKU 3G-CBM-03263

Also listed as: ELV 35004 · ELV-35004

Brand

ELV

Item

Steam solenoid valve D 1/2

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

ELV

fluid

Vapeur (Steam)

cv value

4.5

dimension a mm

75

dimension c mm

129

connection size

1/2"

max pressure bar

10

passage diameter mm

15

operating pressure bar

0.5-10

fluid viscosity max cst

50

max differential pressure bar

25

Datasheet Content

Electrovannes bronze NF vapeur                                                    Code

      Electrovanne vapeur 3/8”                                                                           ELV35002

      Electrovanne vapeur 1/2”                                                                           3G-CBM-03263

      Electrovanne vapeur 3/4”                                                                           ELV35006

      Electrovanne vapeur 1”                                                                             ELV35008

      Electrovanne vapeur 1”1/4                                                                          ELV35010

      Electrovanne vapeur 1”1/2                                                                          ELV35012

      Caractéristiques techniques
                  Modèle             ELV35002   3G-CBM-03263   ELV35006     ELV35008       ELV35010   ELV35012    ELV35014
      Diamètre Raccord                3/8”       1/2”       3/4”           1”          1”1/4      1”1/2         2”
      Diamètre passage               15mm       15mm       20mm          25mm          35mm       35mm         50mm
      Pression différentielle max.     25         25         25            25            25         25          25
      Valeur CV                        4.5        4.5        9.3          13.2           16         26          48
      Dim. A mm                        75         75         85           100           120        120         150
      Dim. C mm                       129        129        141           148           168        168         190
      Viscosité fluide                                             Moins de 50 CST
      Fluide                                                             Vapeur
      Pression fonctionnement                                         0.5 ~ 10 bar
      Pression maxi                                                      10 bar
      Température maxi                                                5°C ~ 180°C
      Tension                                                      +/- 10% - AC230V
      Matériel corps                                                     Bronze
      Membrane                                                            Teflon
      Mode opération                                                  Action directe
      Type                                                        Normalement fermée

      PIÈCES DE RECHANGES POUR VANNES
                  Modèle             ELV35002   3G-CBM-03263   ELV35006     ELV35008       ELV35010   ELV35012    ELV35014
      Référence bobine 220 V         ELV80515   ELV80515   ELV80515     ELV80515       ELV80515   ELV80515    ELV80515
      Référence bobine 110 V            -          -          -             -             -          -           -
      Référence bobine AC 48 V          -          -          -             -             -          -           -
      Référence bobine AC 24 V          -          -          -             -             -          -           -
      Référence bobine AC 12 V          -          -          -             -             -          -           -
      Référence bobine DC 24 V       ELV81515   ELV81515   ELV81515     ELV81515       ELV81515   ELV81515    ELV81515
      Référence bobine DC 12 V       ELV81530   ELV81530   ELV81530     ELV81530       ELV81530   ELV81530    ELV81530
      Référence membrane NBR            -          -          -             -             -          -           -
      Référence membrane EPDM           -          -          -             -             -          -           -
      Référence membrane VITON          -          -          -             -             -          -           -

254
BRASS STREAM VALVES
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                                 1/4
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                     3G-CBM-03263

                                                     ELV35006

                                                     ELV35008

                                                     ELV35010

                                                      ELV35012

                                                                 2/4
                              1/4

        INOX STREAM VALVES
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                     ELV40002

                                                     ELV40004

                                                     ELV40006

                                                     ELV40008

                                                                 3/4
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                                 4/4

Technical Documents

(2)

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

ELV Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

Where can I buy ELV35004 steam solenoid valve in the Philippines?

Order the ELV35004 from 3G Electric Philippines. We deliver to Manila, Quezon City, and nationwide. 3G Electric handles Bureau of Customs documentation, freight logistics, and PHP invoicing for all imports.

What is the lead time for the ELV steam solenoid valve D 1/2?

Lead time depends on stock status. Contact 3G Electric Philippines for availability and delivery schedule. We source globally and manage all import clearance to your facility.

Is the ELV35004 suitable for my steam heating system?

Yes, if your system operates at 0.5–10 bar. The valve has 4.5 Cv flow capacity and DN 1/2 connection. Maximum differential pressure is 25 bar. Confirm your pressure and flow requirements with our technical team.
