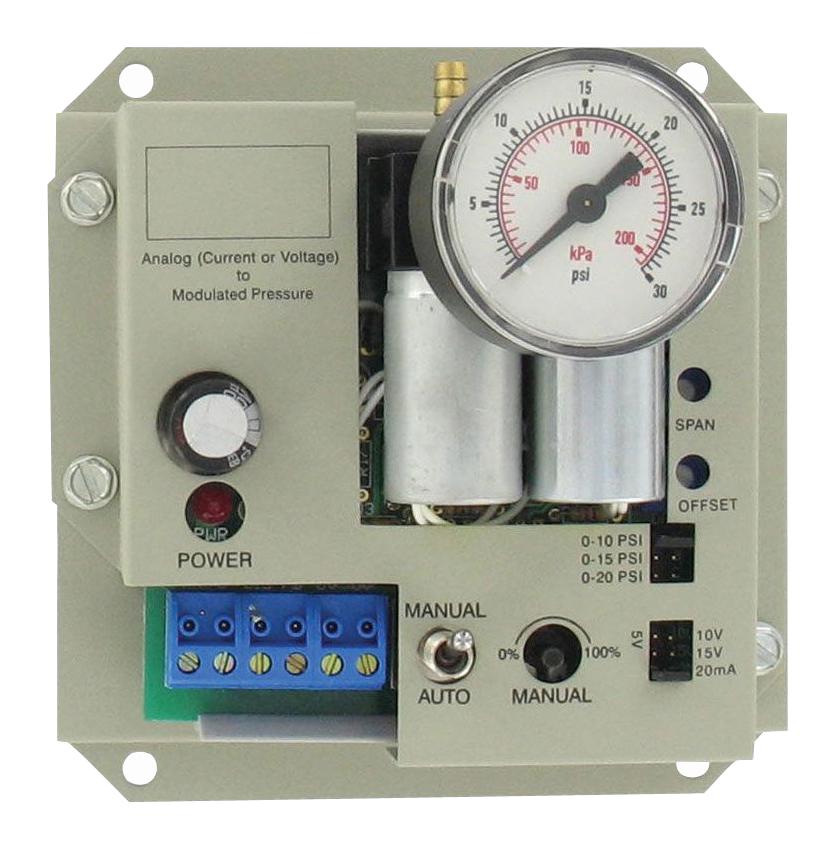

Dwyer Proportional regulator GIK100F02-6

SKU 3G-CBM-02287

Also listed as: DWY 45014 · DWY-45014

Brand

Dwyer

Item

Proportional regulator GIK100F02-6

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

Dwyer

cable length

10 cm

capillary lengths

15, 30, 60 cm

enclosure material

Polycarbonate UL 94 V-0

temperature limits

-40 to +150°C

sensor type rtd accuracy

DIN class B: ±0.3°C @ 0°C

sensor type thermistor accuracy

±0.22°C @ 25°C

Datasheet Content

Série
      TE-A               Capteurs de température moyenne
                         Disponibles pour une Longueur de 15, 30 et 60 cm

                                                                                                                                 2X Ø.875                    Ø3.295
                                                                                                            AVAILABLE            2X Ø.742                                 2X .325 X .2000
                                                                                                             LENGTHS:                                                    MOUNTING SLOTS
                                                                                                            6 FT, 12 FT,    Ø.375
                                                                                                               24 FT

                                                                                                                                                                  4.163

                                                                                                                                                                        4.788
                                                                                                                                .125        2.201
                                                                                                                               GASKET




La Série TE-A de Capteurs de Température moyenne est utilisé pour mesurer la                                   SPÉCIFICATIONS
température dans les conduites larges et les unités de traitement de l’air. Les capillaires en                 Précision :
aluminium pliable sont disponibles pour une longueur de 15, 30 et 60 cm pieds. Ces capillaires                 Capteur de température de thermistance : ± 0.22°C @ 25°C ;
sont disponibles en quatre thermistances de capteurs RTD qui sont calibrés en interne pour livrer un           Capteur de température RTD : DIN classe B : ±0.3°C @ 0°C.
signal de sortie unique. La Série de montage CC1 est disponible pour fixer les capillaires à la paroi          Limites de Température : -40 à +150°C.
de la conduite ou de l’unité de traitement de l’air sans entortiller les fils du capteur à l’intérieur de      Longueurs de Capillaire : 15, 30 et 60 cm (en fonction du modèle).
la sonde. Pour une installation plus rapide, le boîtier présente de nombreux orifices prépercés, de            Longueur de Câble : 10 cm.
larges oreilles de fixation ainsi qu’un couvercle dévissable avec blocage.                                     Courbes du Capteur : Voir Courbes de Résistance pour Séries TE.
                                                                                                               Matériau de la Sonde : Sonde en aluminium pliable.
ACCESSOIRES                                                                                                    Matériau du Boîtier : Répond aux exigences UL, 94 V-0 plastique polycarbonate.
CC1-N, Clip pour Capteurs de Température Moyenne, Naturel (DWY46002)                                           Poids : 397 g.
CC1-B, Clip pour Capteurs de Température Moyenne, Beige (DWY46004)
CC1-GY, Clip pour Capteurs de Température Moyenne, Gris (DWY46006)
                                                                        Longueur                                                                                       Longueur
 Modèle                       Type de Capteur                                                      Réf.         Modèle                Type de Capteur                                    Réf.
                                                                       de Capillaire                                                                                  de Capillaire
 TE-AAG-A0634-00              10K Type III NTC Thermistance                 15                 DWY45002         TE-AAG-D0634-00       Pt100 RTD                            15         DWY45020
 TE-AAG-A1234-00              10K Type III NTC Thermistance                 30                 DWY45004         TE-AAG-D1234-00       Pt100 RTD                            30         DWY45022
 TE-AAG-A2434-00              10K Type III NTC Thermistance                 60                 DWY45006         TE-AAG-D2434-00       Pt100 RTD                            60         DWY45024
 TE-AAG-B0634-00              10K Type II NTC Thermistance                  15                 DWY45008         TE-AAG-E0634-00       Pt1000 RTD                           15         DWY45026
 TE-AAG-B1234-00              10K Type II NTC Thermistance                  30                 DWY45010         TE-AAG-E1234-00       Pt1000 RTD                           30         DWY45028
 TE-AAG-B2434-00              10K Type II NTC Thermistance                  60                 DWY45012         TE-AAG-E2434-00       Pt1000 RTD                           60         DWY45030
 TE-AAG-C0634-00              3K NTC Thermistance                           15                 3G-CBM-02287         TE-AAG-F0634-00       20K NTC Thermistance                 15         DWY45032
 TE-AAG-C1234-00              3K NTC Thermistance                           30                 DWY45016         TE-AAG-F1234-00       20K NTC Thermistance                 30         DWY45034
 TE-AAG-C2434-00              3K NTC Thermistance                           60                 DWY45018         TE-AAG-F2434-00       20K NTC Thermistance                 60         DWY45036

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Dwyer Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Dwyer GIK100F02-6 is a proportional regulator for precision temperature measurement across industrial processes. Features RTD accuracy of DIN class B ±0.3°C at 0°C, operates from -40 to +150°C, and offers selectable capillary lengths up to 60 cm with polycarbonate UL 94 V-0 enclosure for reliable process control.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

Where can I buy the Dwyer GIK100F02-6 proportional regulator in the Philippines?

3G Electric Philippines supplies the Dwyer GIK100F02-6 with delivery to Manila, Quezon City, and nationwide. We handle Bureau of Customs documentation, logistics coordination, and PHP invoicing for seamless procurement.

What lead time applies to the Dwyer GIK100F02-6?

Lead time on request. 3G Electric sources the GIK100F02-6 available to order with expedited delivery options to CALABARZON industrial zones, Luzon food processing plants, and power generation facilities.

What temperature range and RTD accuracy does the GIK100F02-6 offer?

The Dwyer GIK100F02-6 operates from -40 to +150°C with RTD sensor accuracy of DIN class B ±0.3°C @ 0°C. Selectable capillary lengths include 15 cm, 30 cm, and 60 cm options with polycarbonate UL 94 V-0 enclosure.

Used in

Common applications for Dwyer

Combustion air-filter monitoring — Magnehelic Series 2000 on burner air-intake filter banks

Clean-room and pharmaceutical pressurisation — Magnehelic / Capsuhelic differential-pressure gauges

HVAC fan-discharge static pressure — Mark II inclined-vertical manometers on AHU test points

Filter-blockage alarms — Photohelic Series 3000 combined gauge/switch on air-handling units

BMS-integrated pressure monitoring — Digihelic DH3 with 4–20 mA output for building management
