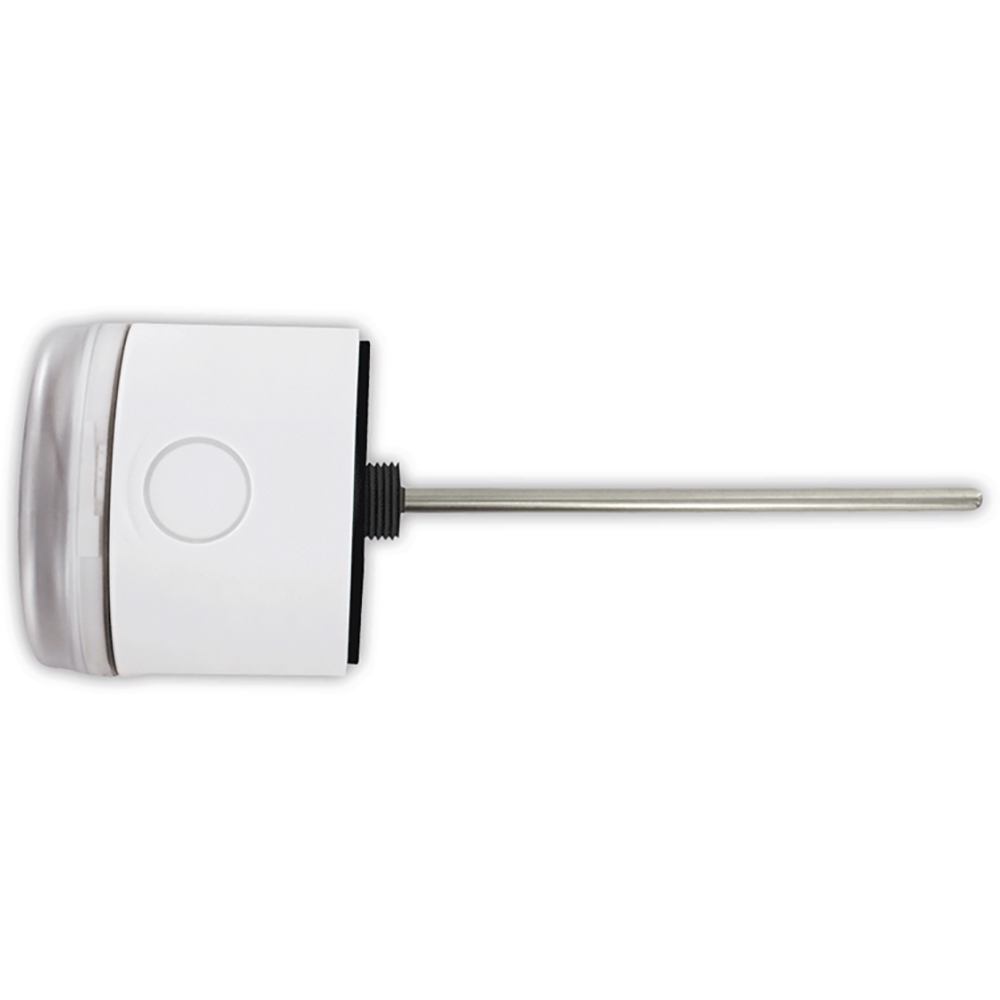

Dwyer Wall temperature probe TE-NND-B

Dwyer wall temperature probe TE-NND-B uses a 10K Ω Type II Thermistor sensor housed in ABS plastic for HVAC and building automation temperature monitoring. Operating range spans -40 to +60°C, making it suitable for…

SKU 3G-CBM-02256

Also listed as: DWY 40004 · DWY-40004

Brand

Dwyer

Item

Wall temperature probe TE-NND-B

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

Dwyer

sensor type

10K Ω Type II Thermistor

housing material

ABS plastic

operating temperature

-40 to +60°C

Datasheet Content

Série
    TE-N/E            Sonde de température à fixation murale
                      Boîtier Discret à Fixation Murale


                                                                                                                            1-1/16
                                                                                                                            [27.05]               1-3/16                 1-5/32
                                                                                                                                                  [30.00]                [29.39]

                                                                                                                                                                                3X-5/32
                                                                                                                                      21/64                                      [3.87]
                                                                                                3-21/32
                                                                                                [92.96]                               [8.38]

                                                                                                                                               3X-3/8
                                                                                                                                               [9.36]
                                                                                                              3-9/16
                                                                                                              [90.42]
                                                                                                                               1-3/32                        35/64
                                                                                                                               [27.69]                      [14.02]


                                                                                                                                         2X-11/64
                                                                                                                                          [4.47]                      3-1/64
                                                                                                     4-1/2
                                                                                                   [114.30]                                                           [76.56]



                                                                                                                2-51/64                    31/64
                   Européen                                  Nord Américain                                     [71.12]                   [12.32]




La Série TE-N/E Sonde de Température à Fixation Murale fournit une                                SPÉCIFICATIONS
température d’entrée à faible coût pour tout système de gestion technique du bâtiment. De         Précision :
larges fentes dans le boîtier permettent d’obtenir un flux d’air correct ; la sonde mesure        Thermostat temp. de la sonde : ±0.2°C @ 25°C ;
précisément la température ambiante dans les chambres d’hôtels ou bâtiments de bureaux.           RTD temp. de la sonde : DIN classe B; ±0.3°C @ 0°C.
Plusieurs trous de fixation sur la plaque murale permettent le montage sur diverses surfaces.     Température Opérationnelle : de -40 à +60°C.
                                                                                                  Matériau du Boîtier : plastique ABS.
                                                                                                  Poids : 136 g.
 Modèle           Type de Sonde                                                   Réf.
 TE-NND-A         10K Ω Type III Thermistor Version N.A.                       DWY40002           Résistance vs tableau de Température
                                                                                                  Voir page 31.
 TE-NND-B         10K Ω Type II Thermistor Version N.A.                        3G-CBM-02256
 TE-NND-C         3K Ω Thermistor Version N.A.                                 DWY40006
 TE-NND-D         Pt100 Ω RTD Version N.A.                                     DWY40008
 TE-NND-E         Pt1000 Ω RTD Version N.A.                                    DWY40010
 TE-NND-F         20K Ω Thermistor Version N.A.                                DWY40012
 TE-END-A         10K Ω Type III Thermistor Version E.U.                       DWY40014
 TE-END-B         10K Ω Type II Thermistor Version E.U.                        DWY40016
 TE-END-C         3K Ω Thermistor Version E.U.                                 DWY40018
 TE-END-D         Pt100 Ω RTD Version E.U.                                     DWY40020
 TE-END-E         Pt1000 Ω RTD Version E.U.                                    DWY40022
 TE-END-F         20K Ω Thermistor Version E.U.                                DWY40024

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Dwyer Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

Where can I buy the Dwyer TE-NND-B temperature probe in the Philippines?

Order the Dwyer TE-NND-B from 3G Electric Philippines. We deliver to Manila and Quezon City with full logistics and Bureau of Customs documentation support. Lead time on request.

What is the operating temperature range of the Dwyer TE-NND-B probe?

The Dwyer TE-NND-B operates from -40 to +60°C, making it ideal for indoor HVAC and building automation applications across Philippine climate zones.

What sensor type does the TE-NND-B wall temperature probe use?

The TE-NND-B uses a 10K Ω Type II Thermistor sensor housed in durable ABS plastic for reliable wall-mounted temperature monitoring in HVAC systems.
