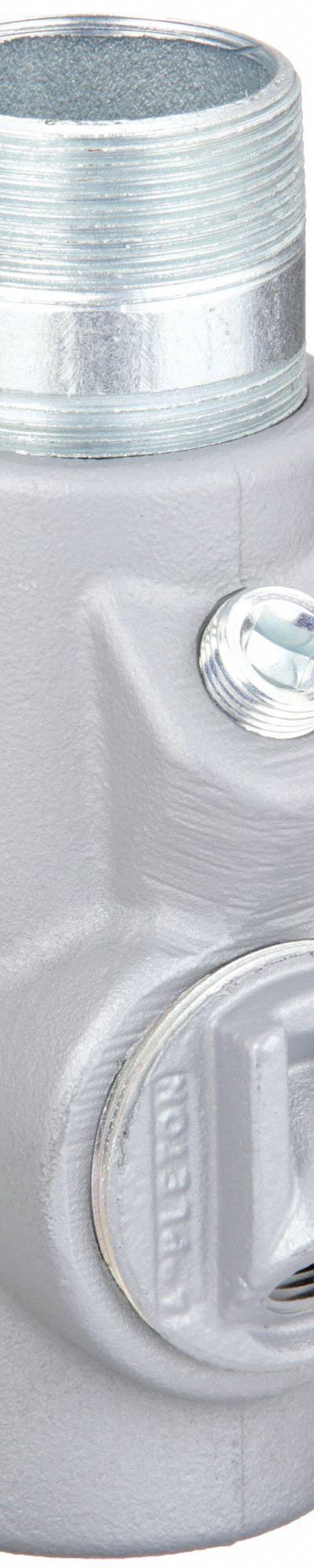

APPLETON ELECTRIC Sealing Fitting - Vertical Sealing Fittings - 25% Fill
APPLETON ELECTRICVertical Sealing Fittings - 25% Fill

APPLETON ELECTRIC Sealing Fitting

The APPLETON ELECTRIC EYDM-200 is a vertical sealing fitting made of iron, with a 2-inch trade size and male-to-female NPT threaded connections (2 in FNPT x 2 in MNPT). It is rated for Class III hazardous locations…

SKU 3G-OTH-05322

Brand
APPLETON ELECTRIC
Item
Sealing Fitting
Category
Vertical Sealing Fittings - 25% Fill
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPLETON ELECTRIC
Brand
APPLETON ELECTRIC
Material
Iron
Standards
CSA C22.2 No 30
Thread Type
NPT
Thread Gender
Male to Female
Threaded Ends
Male to Female
Connection Type
Threaded
Manufacturer Part Number
EYDM-200
Ends - Hazardous Fittings
2 in FNPT x 2 in MNPT
Hazardous Location Rating
Class III
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPLETON ELECTRIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPLETON ELECTRIC EYDM-200 is a vertical sealing fitting made of iron, with a 2-inch trade size and male-to-female NPT threaded connections (2 in FNPT x 2 in MNPT). It is rated for Class III hazardous locations and complies with CSA C22.2 No 30 standards. This fitting is designed for vertical mounting with a 25% fill capacity.

Used in

Common applications for APPLETON ELECTRIC
Oil and gas refineries — Appleton Electric EDSC21MC2 manual motor switch for controlling pumps in Class I, Division 1 areas
Chemical processing plants — Appleton Electric AEAB13420C hazardous location circuit breaker for motor protection in volatile environments
Pharmaceutical manufacturing — Appleton Electric FSK-1VDR weatherproof cover for duplex receptacles in washdown zones
Wastewater treatment facilities — Appleton Electric UNY250R-A aluminum conduit union for corrosion-resistant connections
Mining operations — Appleton Electric EDSC277-SA tandem 2-gang box for junction points in hazardous dust locations
Food and beverage processing — Appleton Electric JBK-75 iron cover for conduit access fittings in wet or dusty areas

APPLETON ELECTRIC Products

3G Electric supplies APPLETON ELECTRIC vertical sealing fittings - 25% fill. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
