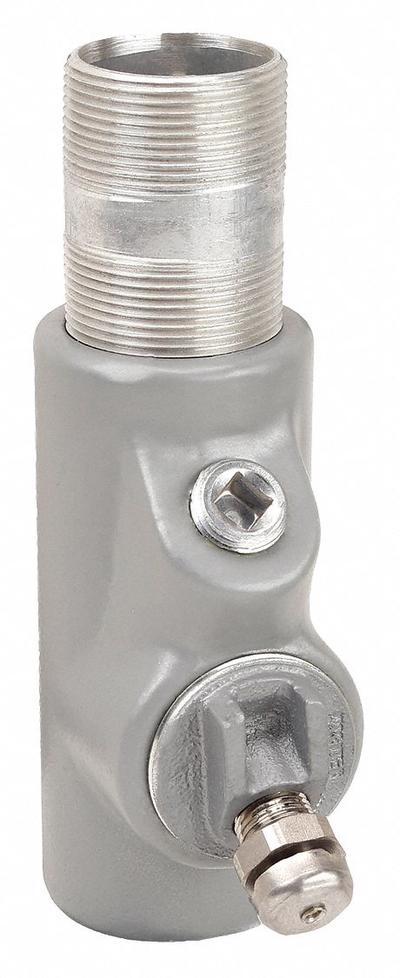

APPLETON ELECTRIC Sealing Fitting - Vertical: Aluminum, 2 in Trade Size, Male to Female - Vertical Sealing Fittings - 25% Fill
APPLETON ELECTRICVertical Sealing Fittings - 25% Fill

APPLETON ELECTRIC Sealing Fitting - Vertical: Aluminum, 2 in Trade Size, Male to Female

The APPLETON ELECTRIC Sealing Fitting is a vertical sealing fitting for 25% fill applications, constructed of powder-coated aluminum with a 2-inch FNPT x 2-inch MNPT threaded connection. It carries a Class III…

SKU 3G-OTH-05334

Brand
APPLETON ELECTRIC
Item
Sealing Fitting - Vertical: Aluminum, 2 in Trade Size, Male to Female
Category
Vertical Sealing Fittings - 25% Fill
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPLETON ELECTRIC
Manufacturer Part Number
EYDM-200AL
Type
- Vertical: Aluminum, Male to Female
Material
Aluminum
Overall Lg
6 1/8 in
Finish
Powder Coated
Standards
CSA C22.2 No 30
Trade Size
2 in
Thread Type
NPT
Thread Gender
Male to Female
Threaded Ends
Male to Female
Connection Type
Threaded
Ends - Hazardous Fittings
2 in FNPT x 2 in MNPT
Hazardous Location Rating
Class III
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPLETON ELECTRIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPLETON ELECTRIC Sealing Fitting is a vertical sealing fitting for 25% fill applications, constructed of powder-coated aluminum with a 2-inch FNPT x 2-inch MNPT threaded connection. It carries a Class III hazardous location rating and complies with CSA C22.2 No 30 standards.
