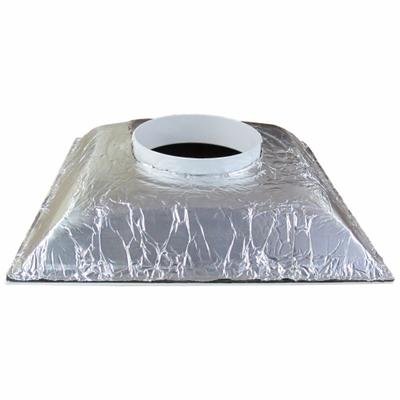

AMERICAN LOUVER Diffuser: Ceiling, 23 3/4 in H, 23 3/4 in W, Lay-In, 6 in Duct, Plastic - Square Cone Diffusers
AMERICAN LOUVERSquare Cone Diffusers

AMERICAN LOUVER Diffuser: Ceiling, 23 3/4 in H, 23 3/4 in W, Lay-In, 6 in Duct, Plastic

The AMERICAN LOUVER Square Cone Diffuser (SKU 270H45, MPN STR-PQ-6W-R6) is a ceiling-mounted, white plastic square plaque diffuser with a 6-inch duct connection and lay-in installation. It is insulated and has…

SKU 3G-OTH-76932

Brand
AMERICAN LOUVER
Item
Diffuser: Ceiling, 23 3/4 in H, 23 3/4 in W, Lay-In, 6 in Duct, Plastic
Category
Square Cone Diffusers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

AMERICAN LOUVER
Manufacturer Part Number
STR-PQ-6W-R6
Type
23 3/4 in W, Lay-In, Plastic, Square Plaque, White
H
23 3/4 in
Duct
6 in
Color
White
Insulated
Yes
Adjustable Blades
No
Mounting Location
Ceiling
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

AMERICAN LOUVER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The AMERICAN LOUVER Square Cone Diffuser (SKU 270H45, MPN STR-PQ-6W-R6) is a ceiling-mounted, white plastic square plaque diffuser with a 6-inch duct connection and lay-in installation. It is insulated and has non-adjustable blades, measuring 23 3/4 inches in both height and width.

Used in

Common applications for AMERICAN LOUVER
Commercial office HVAC — American Louver lay-in eggcrate grilles (STR-ERFG-14W-FR) for ceiling return air systems
Industrial facility ventilation — American Louver surface-mount louvered grilles (SP-10X6-M) on exposed ductwork
Retail space air distribution — American Louver square cone diffusers (STR-C-12W-FR) for supply air in suspended ceilings
Hospital cleanroom airflow — American Louver perforated diffusers (STR-PERF-2214-5PK) for laminar flow ceilings
School building replacement — American Louver square plaque diffusers (STR-PQ-14W-FR) for standard grid ceiling retrofits

AMERICAN LOUVER Products

3G Electric supplies AMERICAN LOUVER square cone diffusers. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
