Weg 3G-OTH-78611 — Technical Specifications

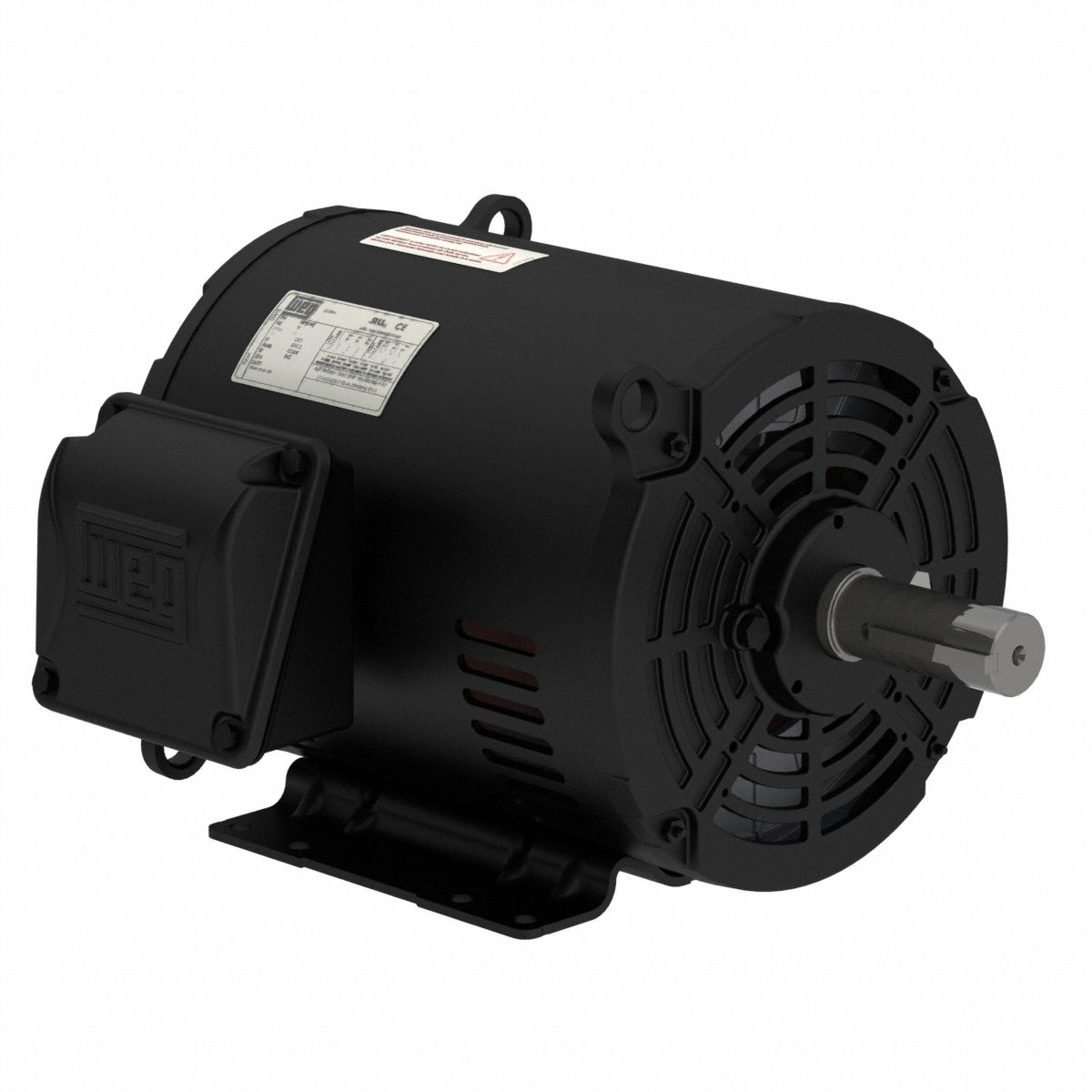

The WEG General Purpose Motor: Rigid Base Mount is a rigid base 3-phase general purpose AC motor with an ODP enclosure. It delivers 5 hp at 1,770 RPM (60 Hz) and operates at 190V AC with a full load current of 6.3 A. This model, MPN 00518OT3E184T-SG, features a 182-4T frame size.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Open Drip Proof, 5 hp, 1,770 RPM |
| Brand | WEG |
| Frame Size | 182-4T |
| Motor Enclosure | ODP |
| Nameplate RPM @ 60 Hz | 1,770 RPM |
| Manufacturer Part Number | 00518OT3E184T-SG |
| Full Load Current @ 60 Hz | 6.3 A |
| Nameplate Voltage @ 60 Hz | 190V AC |
