Weg 3G-OTH-58682 — Technical Specifications

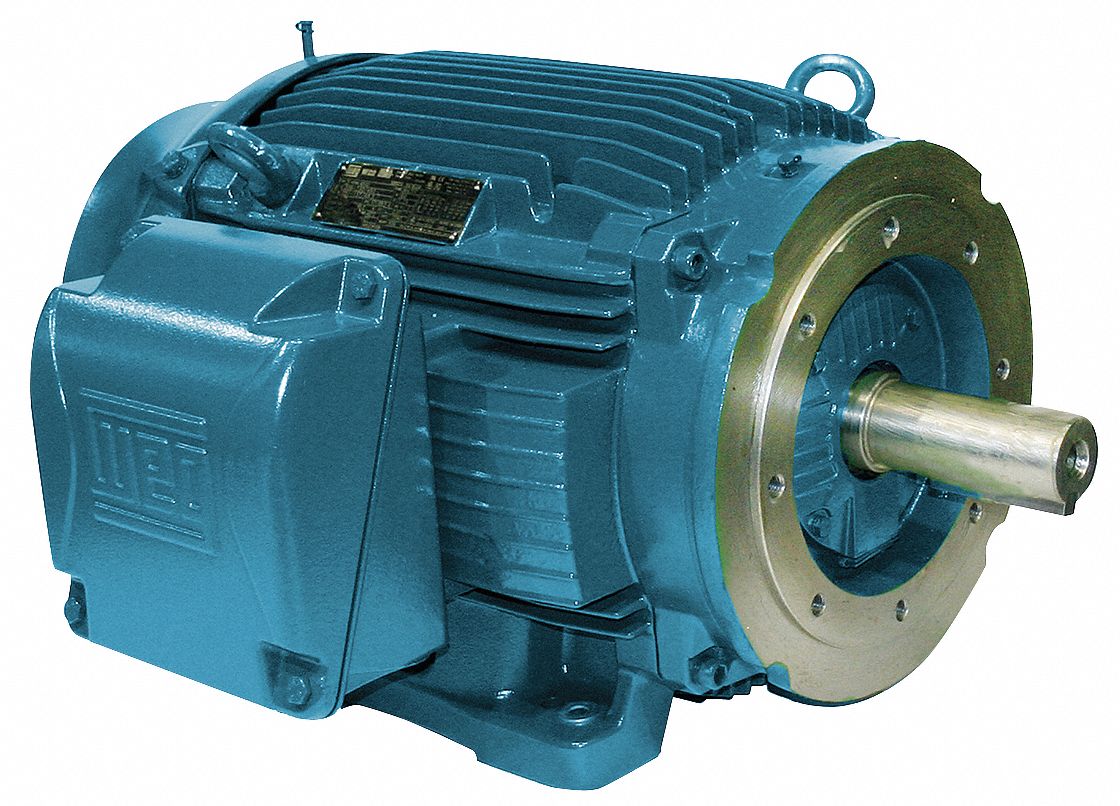

Name: Weg 3G-OTH-58682 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 50 hp, 230/460V AC (MPN 05036ET3E326TSC-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 112.0/56.1 A; Nameplate RPM @ 60 Hz: 3,550 RPM; Motor Enclosure: TEFC.
Brand: Weg

The WEG General Purpose Motor (MPN 05036ET3E326TSC-W22) is a C-Face with Rigid Base 3-Phase AC motor featuring a TEFC enclosure. It is rated at 50 hp with a nameplate voltage of 230/460V AC and a full load current of 112.0/56.1 A at 60 Hz, operating at 3,550 RPM.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 50 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,550 RPM
Manufacturer Part Number	05036ET3E326TSC-W22
Full Load Current @ 60 Hz	112.0/56.1 A
Nameplate Voltage @ 60 Hz	230/460V AC
