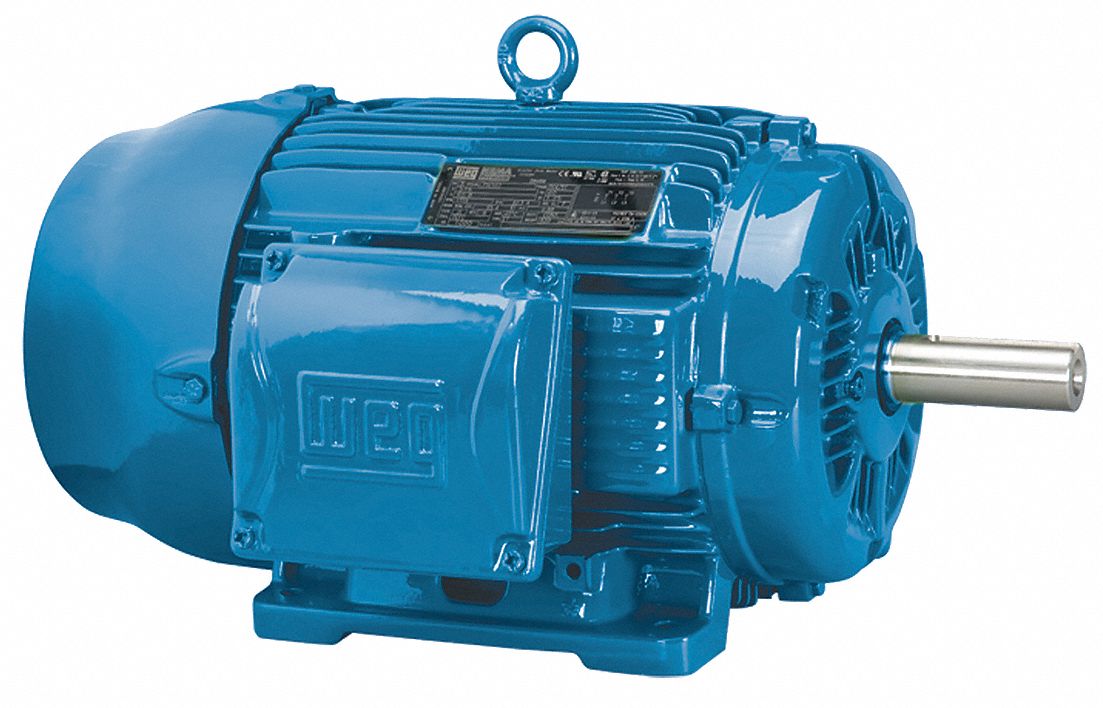

Weg 3G-OTH-67286 — Technical Specifications
The WEG General Purpose Motor is a rigid base 3-phase AC motor with a TEFC enclosure. It is rated at 30 hp, 575V AC, 1,750 RPM, and a full load current of 28.1 A at 60 Hz (MPN 03018ET3H286T-W22).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 30 hp, 1,750 RPM |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,750 RPM |
| Manufacturer Part Number | 03018ET3H286T-W22 |
| Full Load Current @ 60 Hz | 28.1 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
