Weg 3G-OTH-61525 — Technical Specifications

Name: Weg 3G-OTH-61525 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 50 hp, 230/460V AC (MPN 05012ET3E365T-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 115.0/57.4 A; Nameplate RPM @ 60 Hz: 1,175 RPM; Motor Enclosure: TEFC.
Brand: Weg

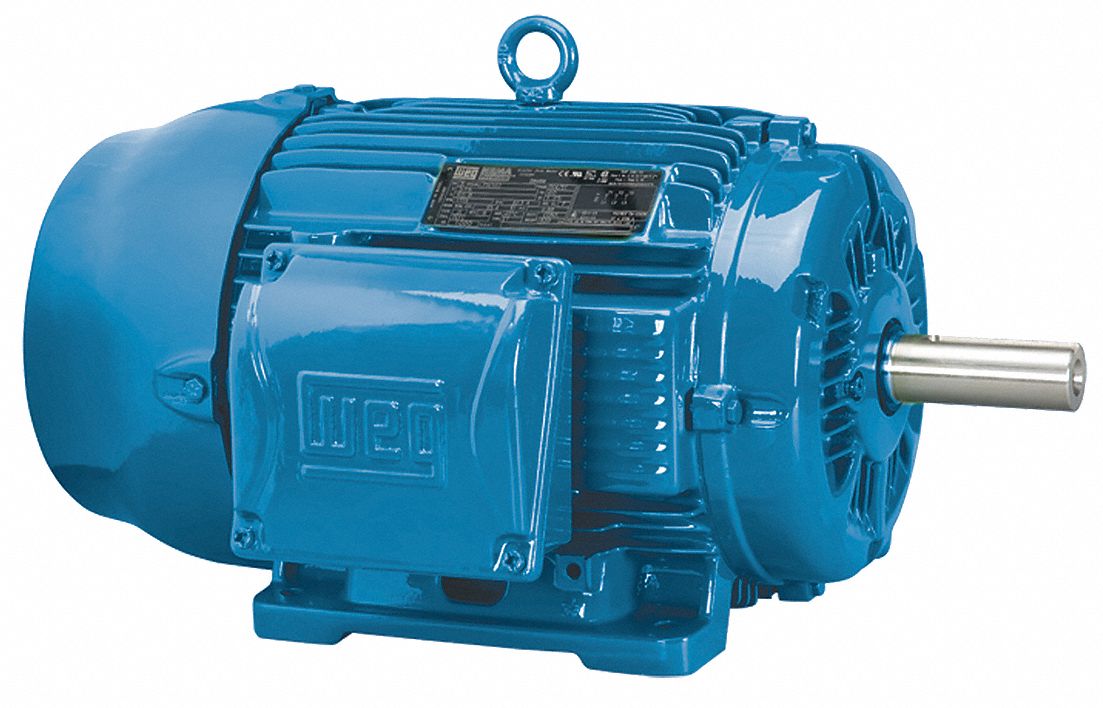

The WEG General Purpose Motor: Rigid Base Mount is a 50 hp, rigid base 3-phase AC motor with a TEFC enclosure. It operates at 1,175 RPM at 60 Hz and is rated for 230/460V AC with a full load current of 115.0/57.4 A (MPN 05012ET3E365T-W22).

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 50 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,175 RPM
Manufacturer Part Number	05012ET3E365T-W22
Full Load Current @ 60 Hz	115.0/57.4 A
Nameplate Voltage @ 60 Hz	230/460V AC
