Weg 3G-OTH-59296 — Technical Specifications

Name: Weg 3G-OTH-59296 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 5 hp, 230/460V AC (MPN 00536ET3E184T-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 11.8/5.90 A; Nameplate RPM @ 60 Hz: 3,485 RPM; Motor Enclosure: TEFC.
Brand: Weg

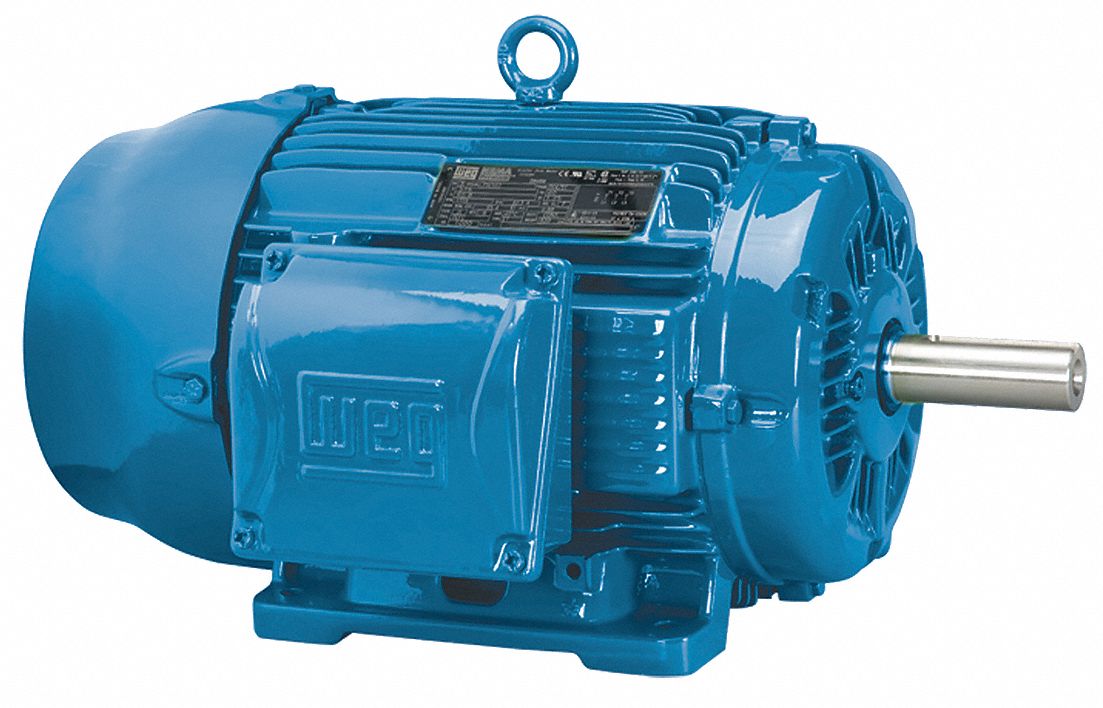

The WEG General Purpose Motor: Rigid Base Mount is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It is rated at 5 hp with a nameplate voltage of 230/460V AC and a full load current of 11.8/5.90 A at 60 Hz. The motor operates at a nameplate RPM of 3,485 RPM at 60 Hz (MPN 00536ET3E184T-W22).

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 5 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,485 RPM
Manufacturer Part Number	00536ET3E184T-W22
Full Load Current @ 60 Hz	11.8/5.90 A
Nameplate Voltage @ 60 Hz	230/460V AC
