Weg 3G-OTH-80019 — Technical Specifications

Name: Weg 3G-OTH-80019 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 1 1/2 hp, 230/460V AC (MPN 00159ET3E184T-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 5.40/2.70 A; Nameplate RPM @ 60 Hz: 865 RPM; Motor Enclosure: TEFC.
Brand: Weg

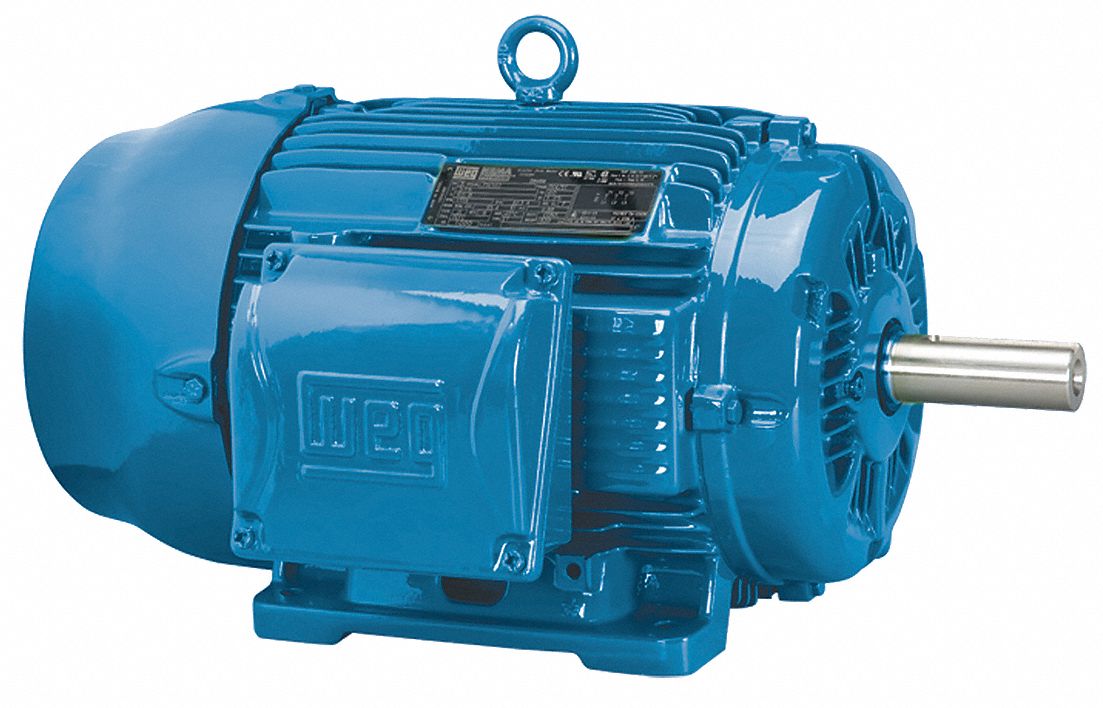

The WEG General Purpose Motor: Rigid Base Mount (MPN 00159ET3E184T-W22) is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It is rated at 1 1/2 hp with a nameplate voltage of 230/460V AC at 60 Hz, drawing a full load current of 5.40/2.70 A and operating at 865 RPM.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 1 1/2 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	865 RPM
Manufacturer Part Number	00159ET3E184T-W22
Full Load Current @ 60 Hz	5.40/2.70 A
Nameplate Voltage @ 60 Hz	230/460V AC
