Weg 3G-OTH-56716 — Technical Specifications

Name: Weg 3G-OTH-56716 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 3 hp, 230/460V AC (MPN 00336ET3E56C-S). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 7.02/3.51 A; Nameplate RPM @ 60 Hz: 3,535 RPM; Motor Enclosure: TEFC.
Brand: Weg

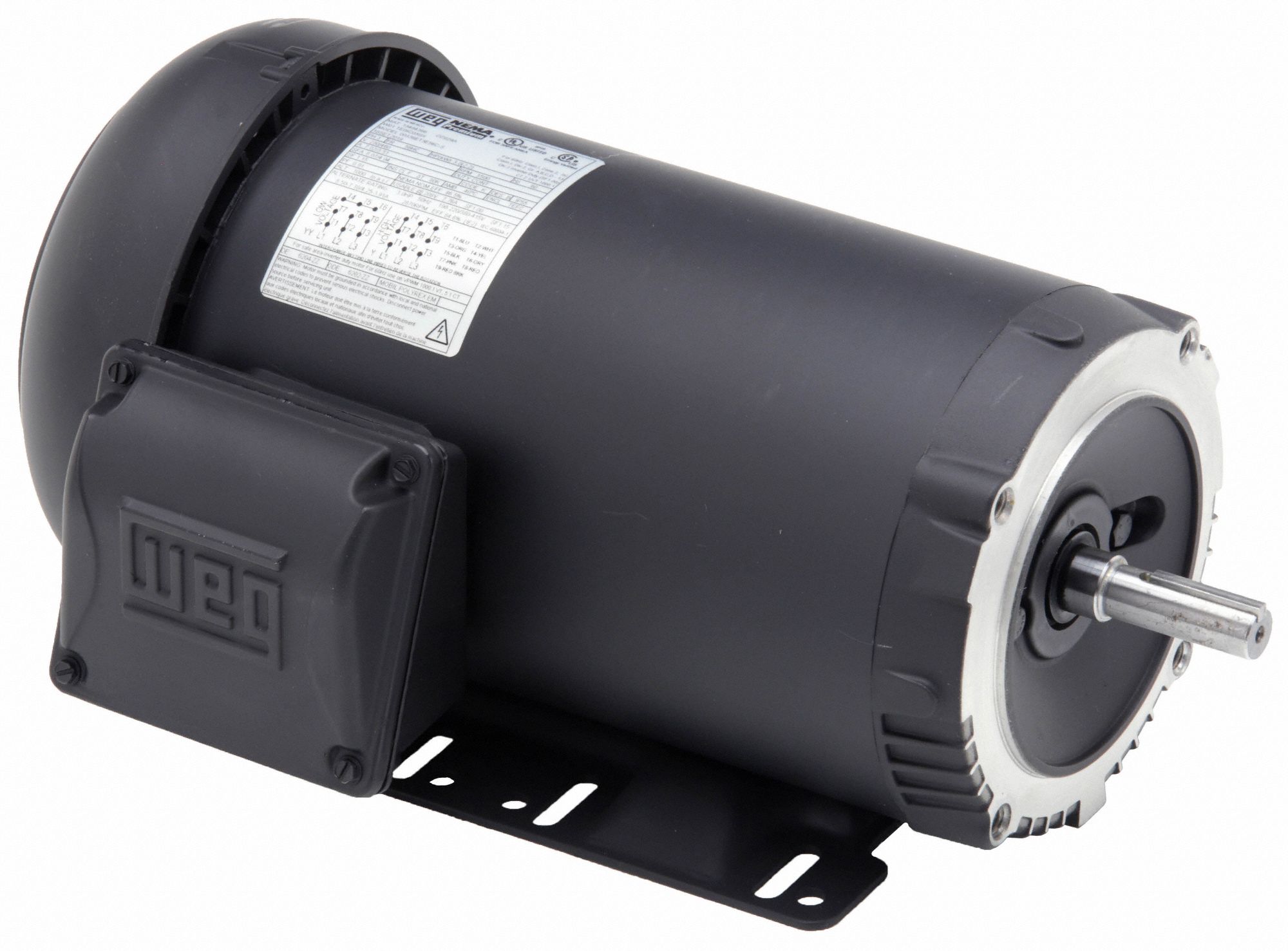

The WEG General Purpose Motor: C-Face/Rigid Base Mount (SKU 52XR40) is a 3 hp, TEFC, 3-phase AC motor with a C-Face and rigid base mount. It operates at 3,535 RPM at 60 Hz and is rated for 230/460V AC with a full load current of 7.02/3.51 A.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 3 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,535 RPM
Manufacturer Part Number	00336ET3E56C-S
Full Load Current @ 60 Hz	7.02/3.51 A
Nameplate Voltage @ 60 Hz	230/460V AC
