Weg 3G-OTH-55965 — Technical Specifications

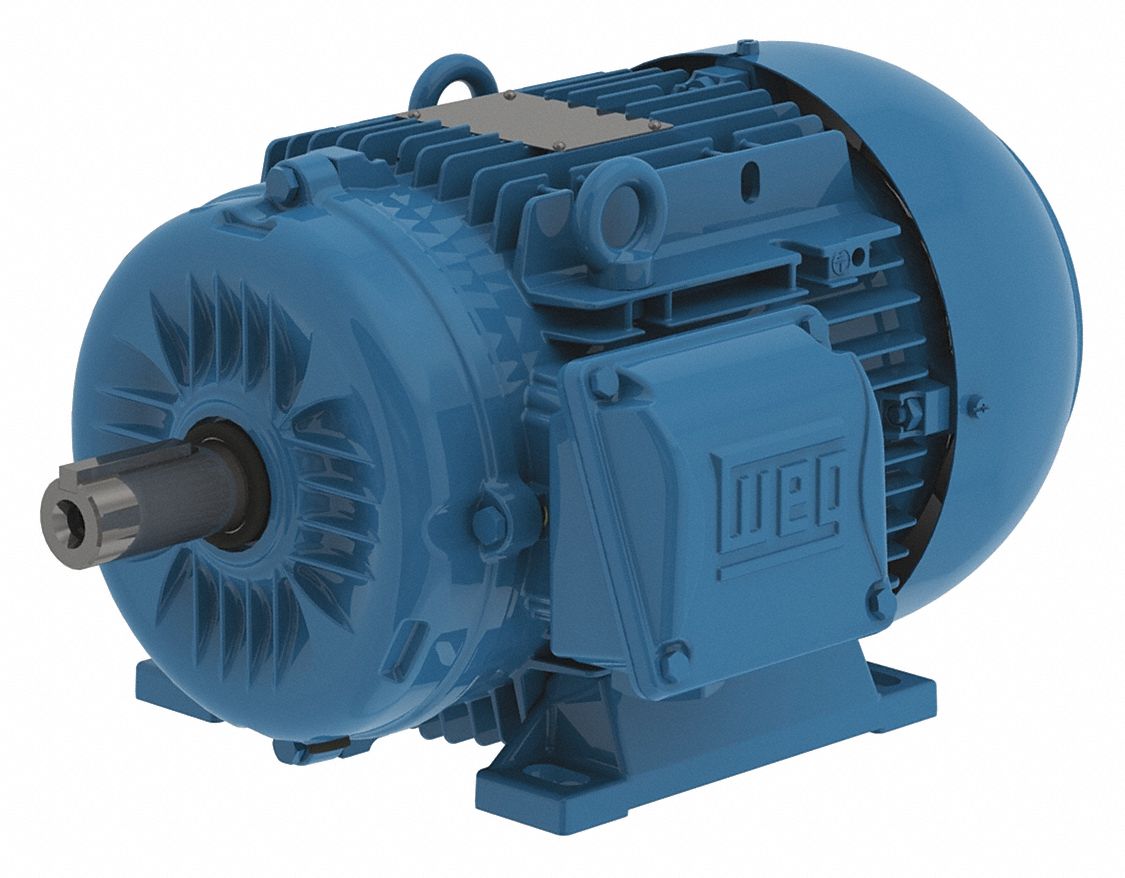

The WEG Metric Motor is a 1 1/2 hp Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a TEFC enclosure. It operates at 1165 RPM at 60 Hz and draws 4.6/2.3 A Full Load Amps at 230/460V AC. This motor features a 100L Frame Size and is identified by manufacturer part number 13734168.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Rigid Base Mount, Totally Enclosed Fan Cooled, 1165 RPM |
| Brand | WEG |
| Frame Size | 100L |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1165 RPM |
| Full Load Amps @ 60 Hz | 4.6/2.3 A |
| Manufacturer Part Number | 13734168 |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
