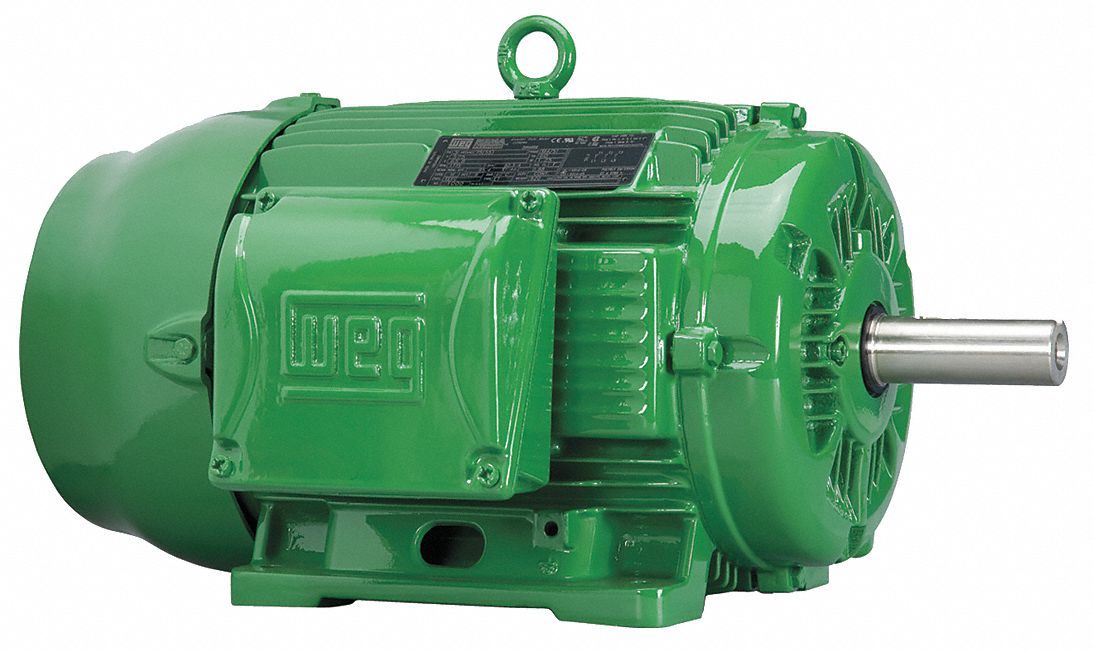

Weg 3G-OTH-59836 — Technical Specifications

Name: Weg 3G-OTH-59836 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 7 1/2 hp, 230/460V AC (MPN 00736EG3E213T-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 17.6/8.82 A; Nameplate RPM @ 60 Hz: 3,530 RPM; Motor Enclosure: TEFC.
Brand: Weg

The WEG General Purpose Motor: Rigid Base Mount (MPN 00736EG3E213T-W22) is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It is rated at 7 1/2 hp with a nameplate voltage of 230/460V AC at 60 Hz, a full load current of 17.6/8.82 A, and a nameplate RPM of 3,530 RPM at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 7 1/2 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,530 RPM
Manufacturer Part Number	00736EG3E213T-W22
Full Load Current @ 60 Hz	17.6/8.82 A
Nameplate Voltage @ 60 Hz	230/460V AC
