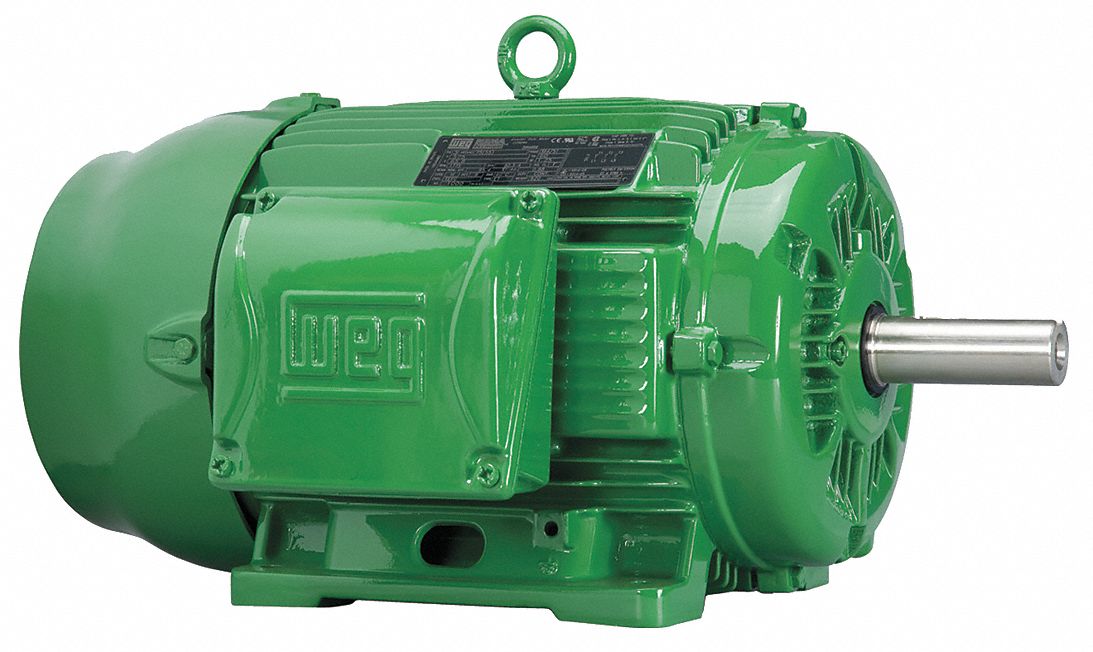

Weg 3G-OTH-56364 — Technical Specifications
The WEG General Purpose Motor: Rigid Base Mount (SKU 39J096) is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It is rated at 1 1/2 hp with a nameplate voltage of 230/460V AC and a full load current of 3.86/1.93 A at 60 Hz. The motor operates at 1,760 RPM and is identified by manufacturer part number 00158EG3EL145T-W22.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | Totally Enclosed Fan Cooled, 1 1/2 hp |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,760 RPM |
| Manufacturer Part Number | 00158EG3EL145T-W22 |
| Full Load Current @ 60 Hz | 3.86/1.93 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
