Weg 3G-OTH-59179 — Technical Specifications

Name: Weg 3G-OTH-59179 WEG General Purpose Motor: Rigid Base Mount, Open Drip Proof, 5 hp, 230/460V AC, 1,760 RPM (MPN 00518OT3E184T-S). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 12.7/6.33 A; Nameplate RPM @ 60 Hz: 1,760 RPM; Motor Enclosure: ODP.
Brand: Weg

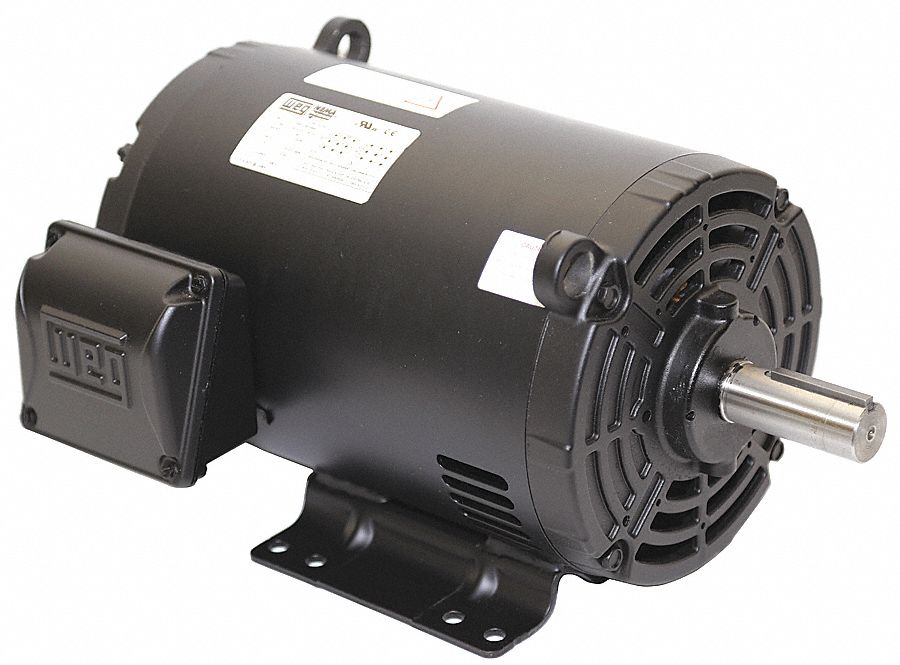

The WEG General Purpose Motor is a Rigid Base 3-Phase AC Motor with an ODP enclosure, rated at 5 hp, 1,760 RPM, and 230/460V AC. It draws 12.7/6.33 A full load current at 60 Hz (MPN 00518OT3E184T-S).

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Open Drip Proof, 5 hp, 1,760 RPM
Brand	WEG
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	1,760 RPM
Manufacturer Part Number	00518OT3E184T-S
Full Load Current @ 60 Hz	12.7/6.33 A
Nameplate Voltage @ 60 Hz	230/460V AC
