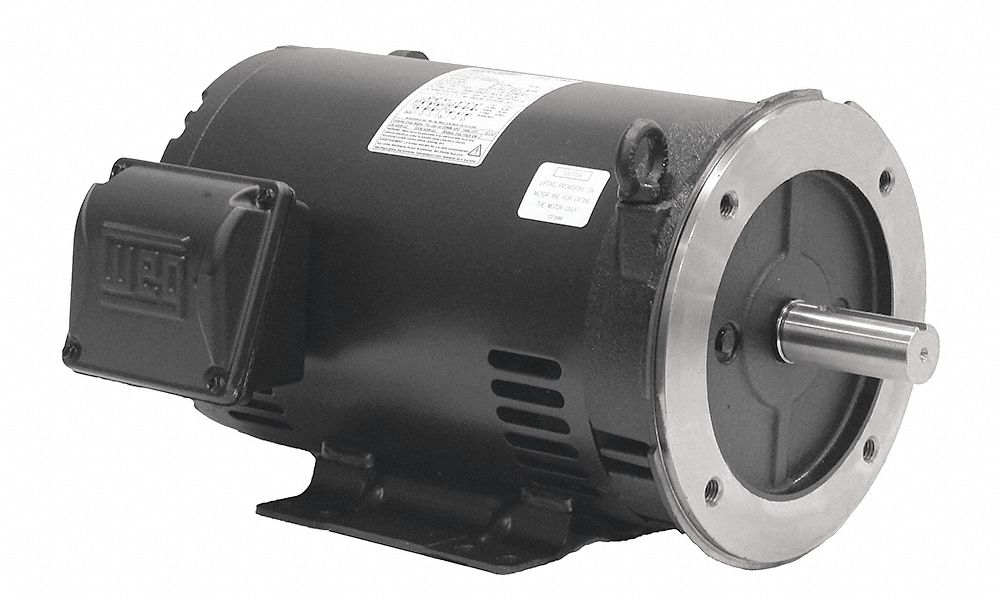

Weg 3G-OTH-54592 — Technical Specifications

Name: Weg 3G-OTH-54592 WEG General Purpose Motor: C-Face/Rigid Base Mount, Open Drip Proof, 15 hp, 230/460V AC, 1,800 RPM (MPN 01518OT3E254TC-S). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 37.2/18.6 A; Nameplate RPM @ 60 Hz: 1,800 RPM; Motor Enclosure: ODP.
Brand: Weg

The WEG General Purpose Motor is a C-Face with Rigid Base 3-Phase AC motor in an Open Drip Proof (ODP) enclosure. It is rated 15 hp with a nameplate voltage of 230/460V AC, full load current of 37.2/18.6 A, and nameplate RPM of 1,800 RPM at 60 Hz (MPN 01518OT3E254TC-S).

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Open Drip Proof, 15 hp, 1,800 RPM
Brand	WEG
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	1,800 RPM
Manufacturer Part Number	01518OT3E254TC-S
Full Load Current @ 60 Hz	37.2/18.6 A
Nameplate Voltage @ 60 Hz	230/460V AC
