Weg 3G-OTH-54721 — Technical Specifications

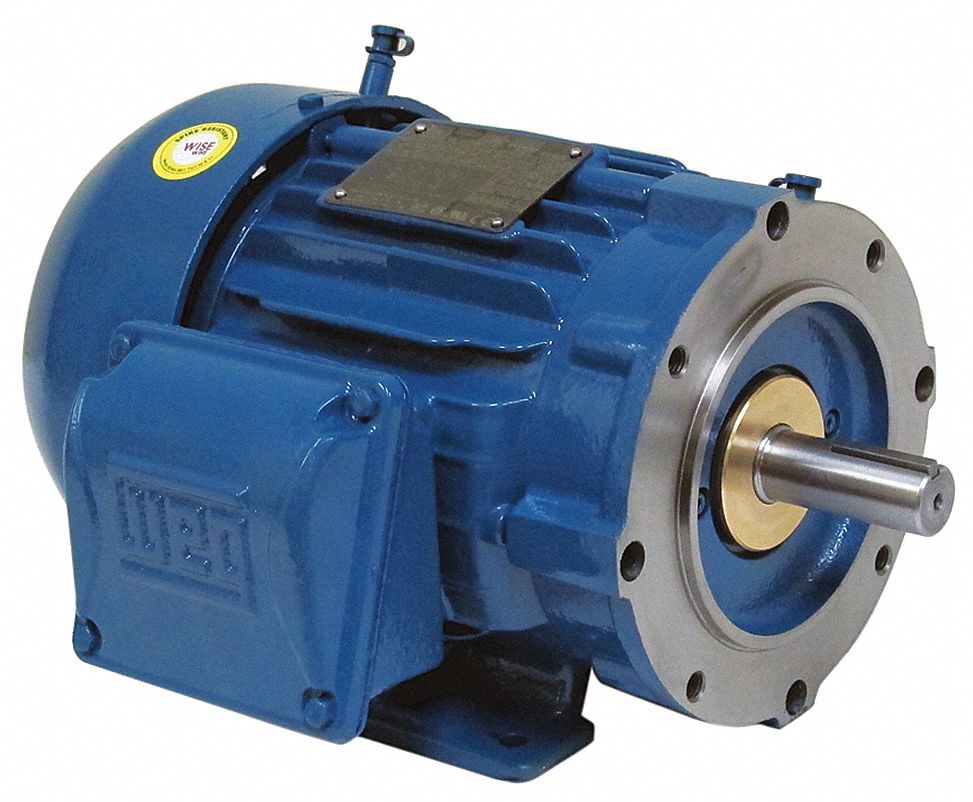

The WEG General Purpose Motor (MPN 03018ET3H286TC-W22) is a C-Face with Rigid Base 3-Phase AC motor in a TEFC enclosure. It is rated 30 hp, 575V AC, with a full load current of 28.1 A and a nameplate RPM of 1,755 RPM at 60 Hz.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 30 hp |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,755 RPM |
| Manufacturer Part Number | 03018ET3H286TC-W22 |
| Full Load Current @ 60 Hz | 28.1 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
