Weg 3G-OTH-57996 — Technical Specifications

Name: Weg 3G-OTH-57996 WEG General Purpose Motor: 175 hp, Rigid Base Mount, 315S/M Frame Size, Totally Enclosed Fan Cooled (MPN 13236ET3Y315S/M-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 460V AC; Full Load Amps @ 60 Hz: 193.0 A; Nameplate RPM @ 60 Hz: 3580 RPM; Motor Enclosure: TEFC.
Brand: Weg

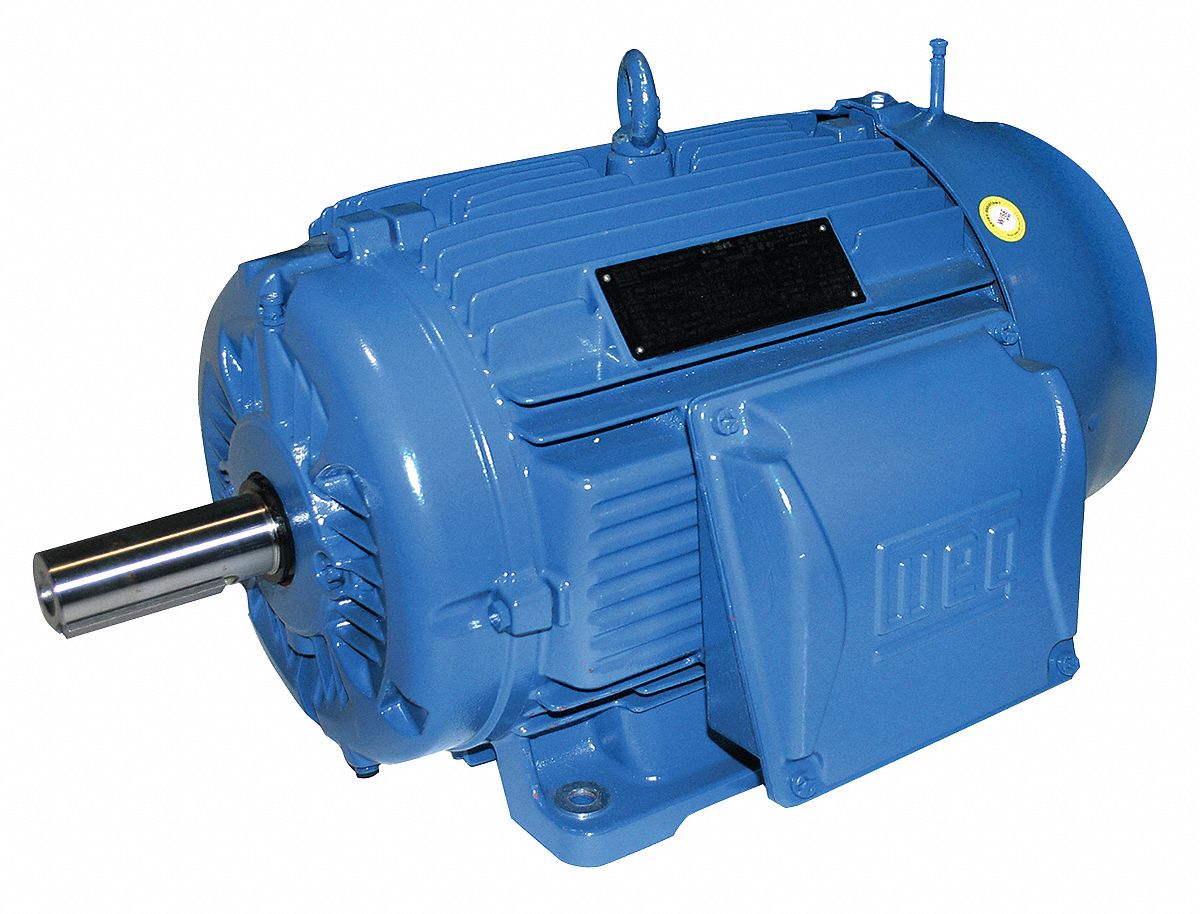

The WEG General Purpose Motor (175 hp) is a Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a TEFC enclosure. It operates at 3580 RPM at 60 Hz, with a full load amperage of 193.0 A at 460V AC. This model (MPN 13236ET3Y315S/M-W22) features a 315S/M frame size.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Rigid Base Mount, Totally Enclosed Fan Cooled
Brand	WEG
Frame Size	315S/M
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3580 RPM
Full Load Amps @ 60 Hz	193.0 A
Manufacturer Part Number	13236ET3Y315S/M-W22
Nameplate Voltage @ 60 Hz	460V AC
