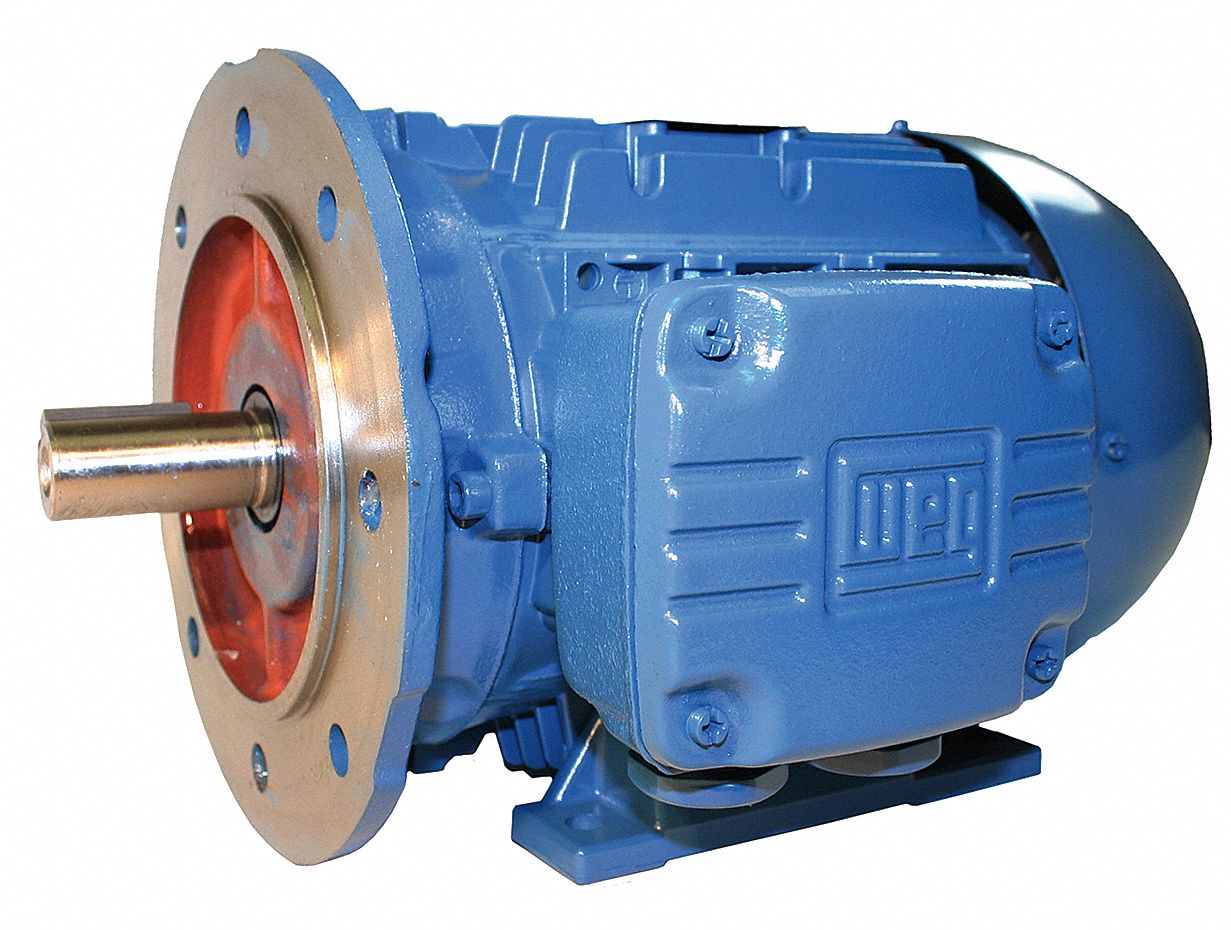

Weg 3G-OTH-54597 — Technical Specifications
The WEG General Purpose Motor is a 50 hp C-Face with Rigid Base 3-Phase IEC Metric General Purpose AC Motor. It features a TEFC enclosure, a nameplate voltage of 460V AC at 60 Hz, a full load amps rating of 59.8 A at 60 Hz, and a nameplate RPM of 3570 at 60 Hz. This motor is identified by manufacturer part number 03736ET3Y200LFF-W22.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 460V |
| Type | C-Face/Rigid Base Mount, 3570 RPM |
| Brand | WEG |
| Frame Size | 200L |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3570 RPM |
| Full Load Amps @ 60 Hz | 59.8 A |
| Manufacturer Part Number | 03736ET3Y200LFF-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
