Weg 3G-OTH-56757 — Technical Specifications

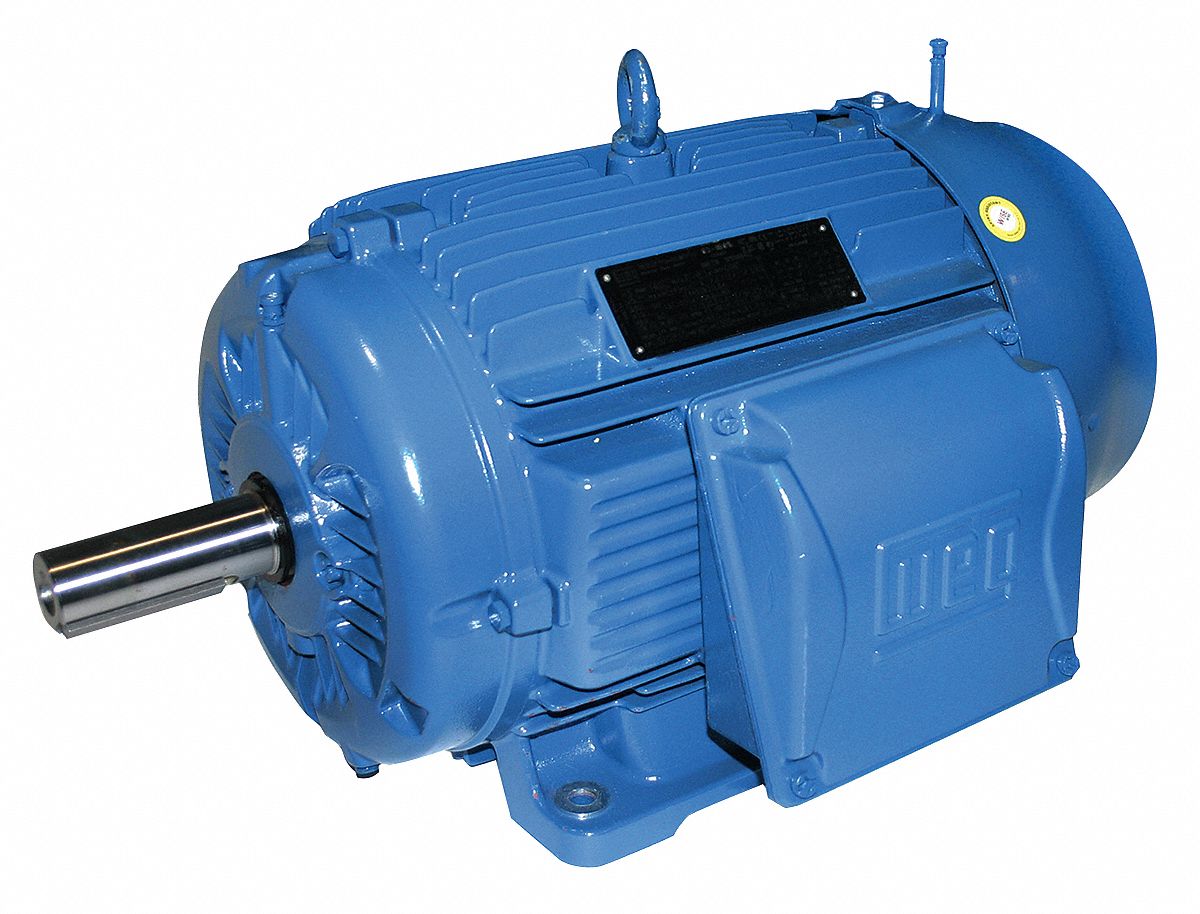

The WEG General Purpose Motor: 40 hp is a Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a TEFC enclosure. It features a nameplate voltage of 460V AC at 60 Hz, a full load amps rating of 47.1 A at 60 Hz, and a nameplate RPM of 3570 RPM at 60 Hz. This motor is identified by manufacturer part number 03036ET3Y200L-W22.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | WEG |
| Frame Size | 200L |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3570 RPM |
| Full Load Amps @ 60 Hz | 47.1 A |
| Manufacturer Part Number | 03036ET3Y200L-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
