Weg 3G-OTH-54608 — Technical Specifications

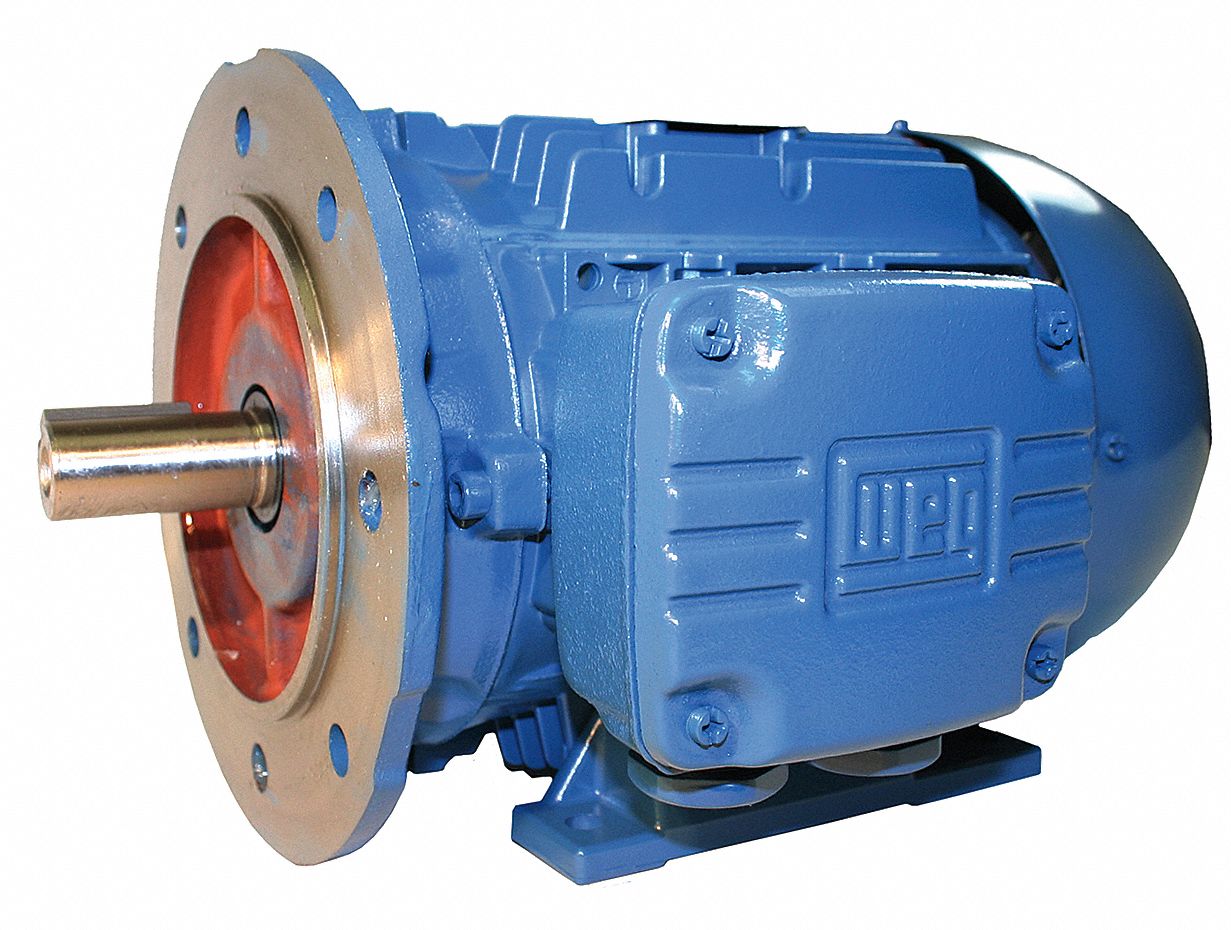

The WEG General Purpose Motor is a 30 hp C-Face with Rigid Base 3-Phase IEC Metric General Purpose AC Motor. It features a TEFC enclosure, a nameplate voltage of 460V AC at 60 Hz, a full load amps rating of 36.0 A at 60 Hz, and a nameplate RPM of 1,775 at 60 Hz.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 460V |
| Type | C-Face/Rigid Base Mount, 1,775 RPM |
| Brand | WEG |
| Frame Size | 180L |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,775 RPM |
| Full Load Amps @ 60 Hz | 36.0 A |
| Manufacturer Part Number | 02218ET3Y180LFF-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
