Weg 3G-OTH-56633 — Technical Specifications

Name: Weg 3G-OTH-56633 WEG General Purpose Motor: 20 hp, Rigid Base Mount, 160M Frame Size, Totally Enclosed Fan Cooled (MPN 01536ET3Y160M-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 460V AC; Full Load Amps @ 60 Hz: 24.4 A; Nameplate RPM @ 60 Hz: 3550 RPM; Motor Enclosure: TEFC.
Brand: Weg

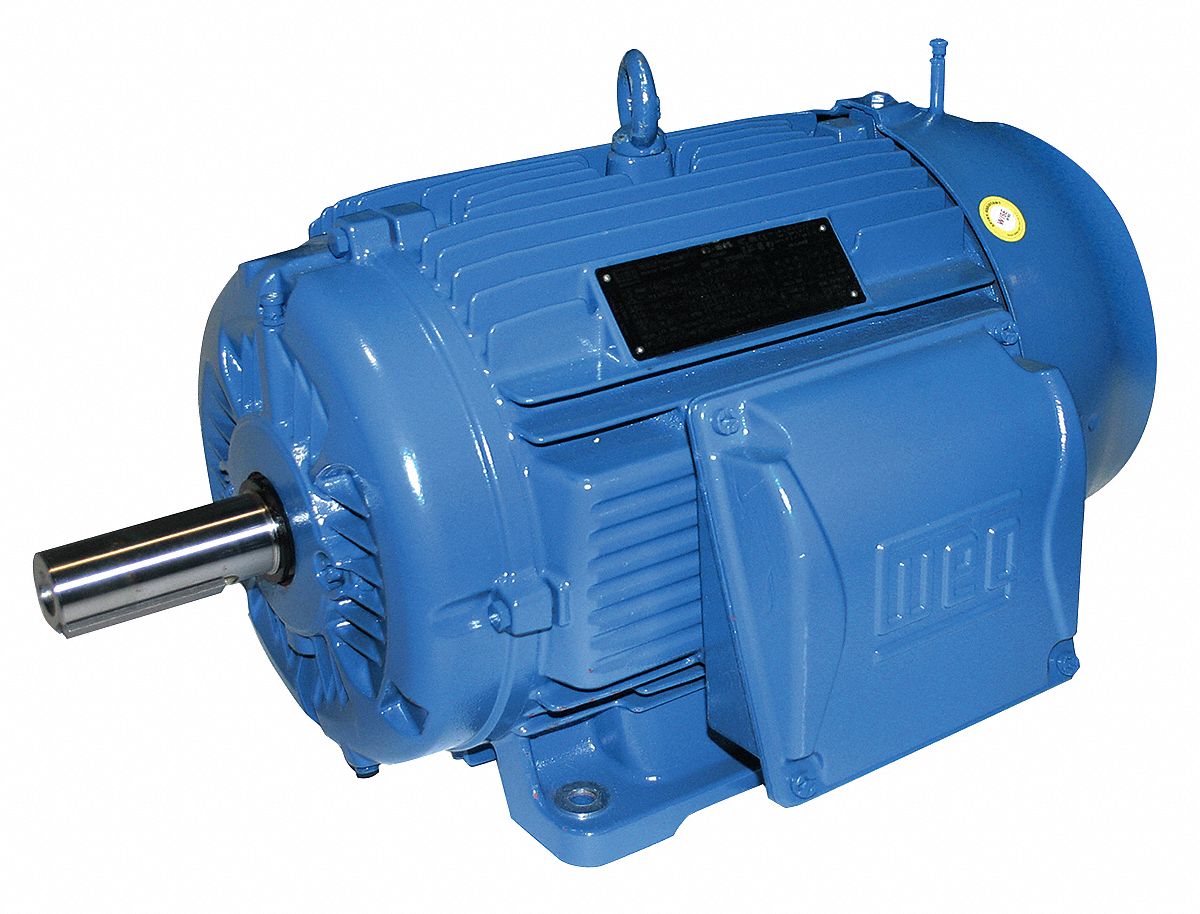

The WEG General Purpose Motor is a 20 hp Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a TEFC enclosure. It operates at 3550 RPM and 460V AC at 60 Hz, drawing 24.4 full load amps. This motor features a 160M frame size and is identified by manufacturer part number 01536ET3Y160M-W22.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Rigid Base Mount, Totally Enclosed Fan Cooled
Brand	WEG
Frame Size	160M
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3550 RPM
Full Load Amps @ 60 Hz	24.4 A
Manufacturer Part Number	01536ET3Y160M-W22
Nameplate Voltage @ 60 Hz	460V AC
