Weg 3G-OTH-57831 — Technical Specifications

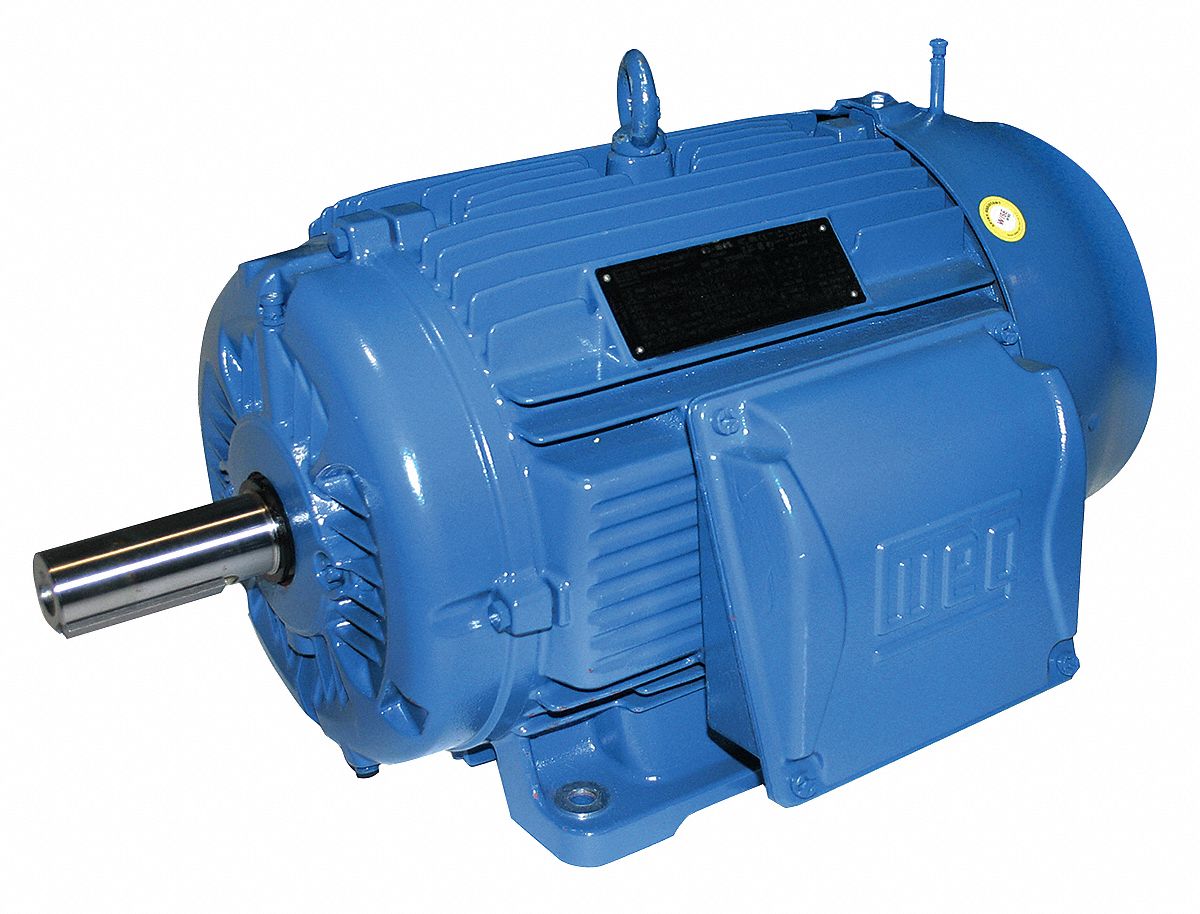

The WEG General Purpose Motor is a 5 1/2 hp Rigid Base 3-Phase IEC Metric General Purpose AC Motor (MPN 00418ET3Y112M-W22). It features a TEFC enclosure, a 112M frame size, and operates at 1,755 RPM with 460V AC and 7.28 full load amps at 60 Hz.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | WEG |
| Frame Size | 112M |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,755 RPM |
| Full Load Amps @ 60 Hz | 7.28 A |
| Manufacturer Part Number | 00418ET3Y112M-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
