Warner Electric 3G-OTH-109208 — Technical Specifications

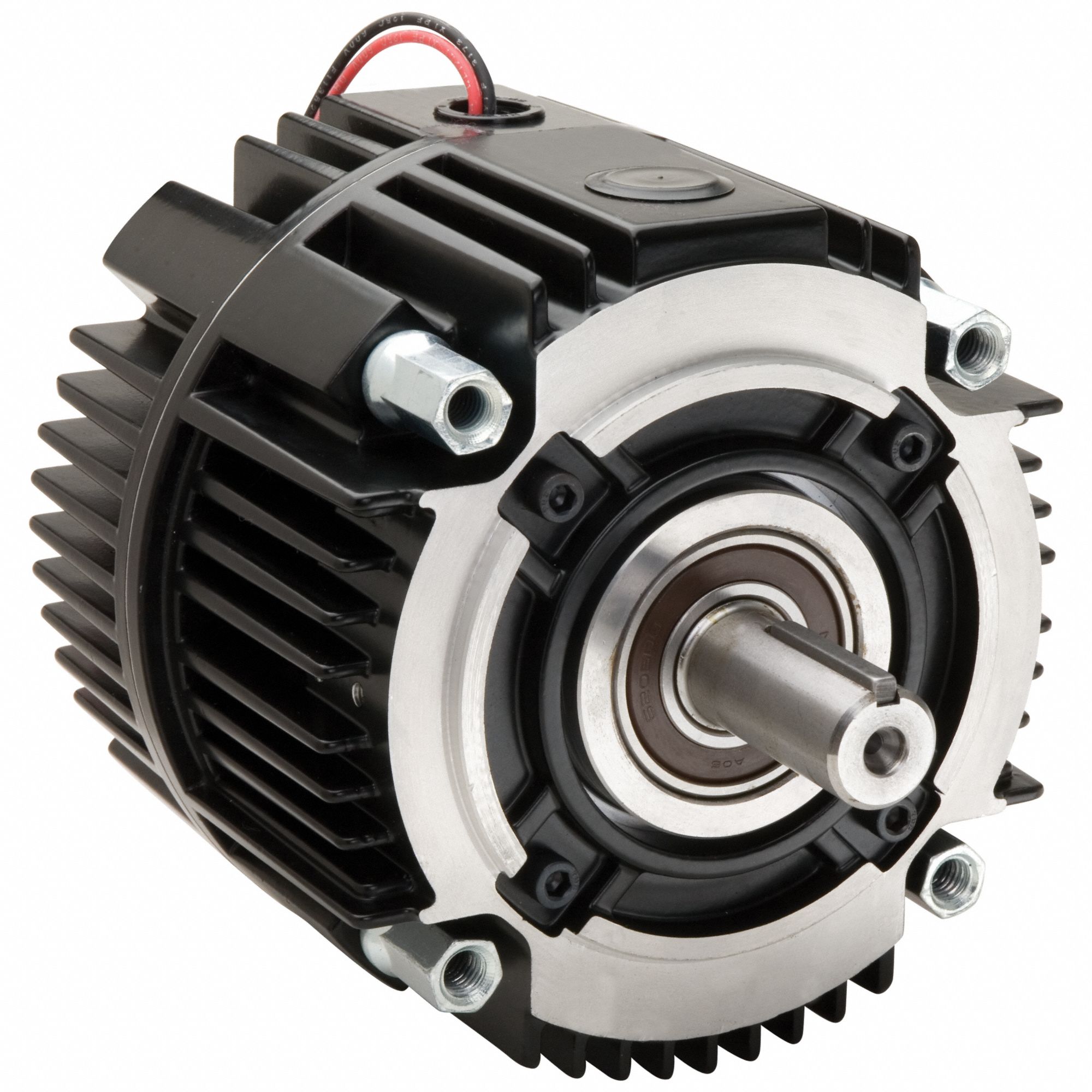

The WARNER ELECTRIC UM50-1020-90 is a 90V DC combined clutch and brake unit designed for use with NEMA C-Face motors and reducers. It features a vented enclosure, mounts on a NEMA C-Face motor or between the motor and reducer, and is compatible with 56C NEMA motor frames. The unit delivers 16 ft-lb static torque and includes mounting hardware.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 90V |
| NEMA | 56C |
| Type | Vented, 16 ft-lb Static Torque |
| Brand | WARNER ELECTRIC |
| Includes | Mounting Hardware |
| For Use With | NEMA C-Face Motor/Reducer |
| Enclosure Type | Vented |
| Mounting Location | NEMA C-Face Motor or Between Motor and Reducer |
| Motor Frame Designation | 56C NEMA |
| Manufacturer Part Number | UM50-1020-90 |
