Vne 3G-OTH-429414 — Technical Specifications

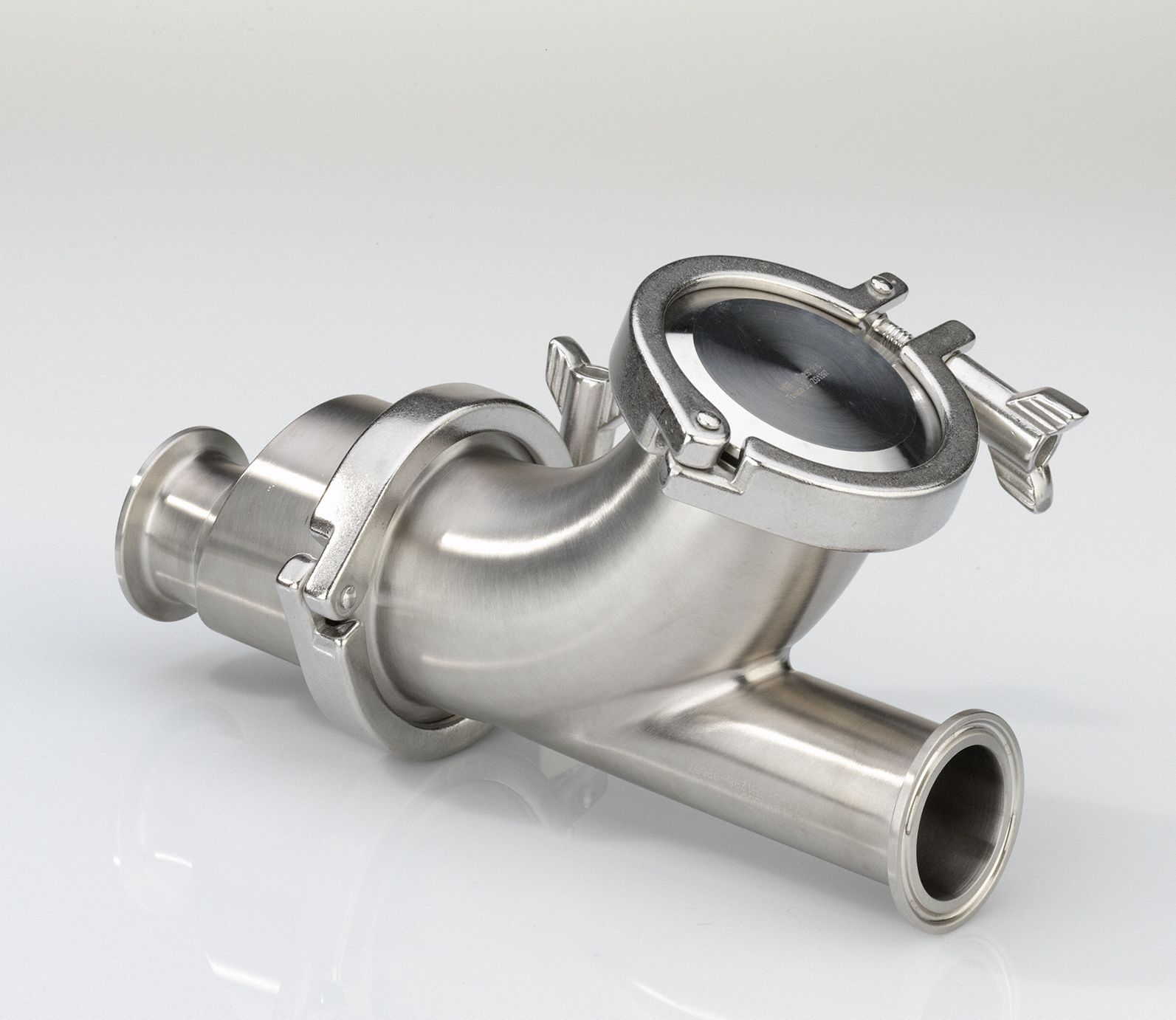

The VNE Ball Check Valve: Ball is a 3-A Certified stainless steel ball check valve from the EG45BY-6 series, designed for fluid media. It features a Y-style 316L stainless steel body with clamp x clamp connections, a 2 1/2 in pipe size, and meets FDA standards and 3A Sanitary Standards. The valve has a standard silent check, an average surface roughness of 32 micron-in, and is intended for horizontal mounting without a counterweight.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Y-Style Valve Body, Std, FKM |
| Brand | VNE |
| For Media | Fluids |
| Pipe Size | 2 1/2 in |
| Standards | FDA |
| Silent Check | Standard |
| Valve Series | EG45BY-6 |
| 3-A Compliance | Meets 3A Sanitary Standards |
| Connection Type | Clamp x Clamp |
| Stainless Steel | 316L |
| Mounting Orientation | Horizontal |
| Includes Counterweight | No Counterweight |
| Connection Type - Side 1 | Clamp |
| Connection Type - Side 2 | Clamp |
| Manufacturer Part Number | EG45BY-62.5-V |
| Average Surface Roughness (Ra) | 32 micron-in |
