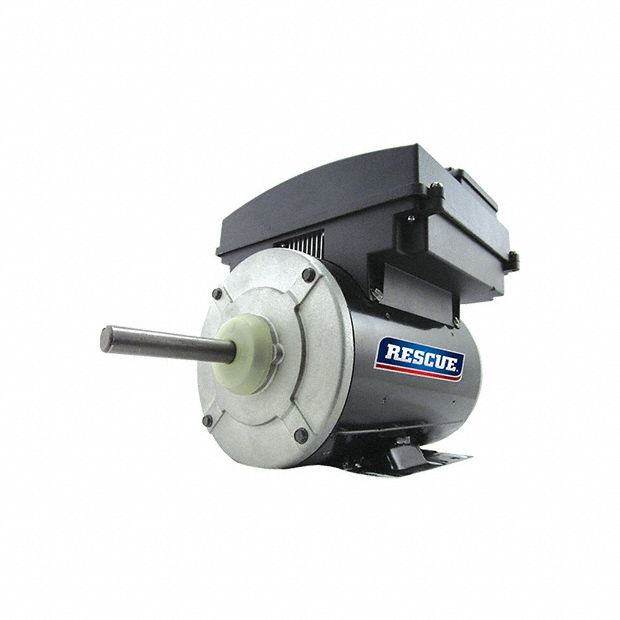

U.s. Motors 3G-OTH-55171 — Technical Specifications
The U.S. MOTORS RESCUE® Series EC Motor (SKU 54ZX80) is a constant RPM ECM condenser fan motor with a 56HZ frame size and TEAO enclosure, rated at 2-1/4 hp (1,600 W) and 2.7 A full load amps at 460V AC and 60 Hz. It features an integrated controller with 0-10 Vdc inputs, a rigid base mount, and is designed for outdoor use. The motor operates at 1,200/300 RPM nameplate speed at 60 Hz.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Rigid Base, ECM, 2 1/4 hp, 2.7 A |
| Brand | U.S. MOTORS |
| Features | Outdoor Use |
| Includes | Rigid Base Mount |
| Frame Size | 56HZ |
| ECM Motor Type | Constant RPM |
| Motor Enclosure | TEAO |
| Rated Horsepower | 2-1/4 hp |
| Horsepower/Wattage | 2-1/4 hp1,600 W |
| External Control Type | Integrated controller 0-10 Vdc Inputs |
| Nameplate RPM @ 60 Hz | 1,200/300 RPM |
| Full Load Amps @ 60 Hz | 2.7 A |
| Includes User Interface | No |
| Manufacturer Part Number | 6362EO |
| Nameplate Voltage @ 60 Hz | 460V AC |
| MOTORS Condenser Fan Motor | RESCUE® EcoTech™ |
| External Controller Compatible | No |
| Compatible With External Controller | Not External Control Compatible |
