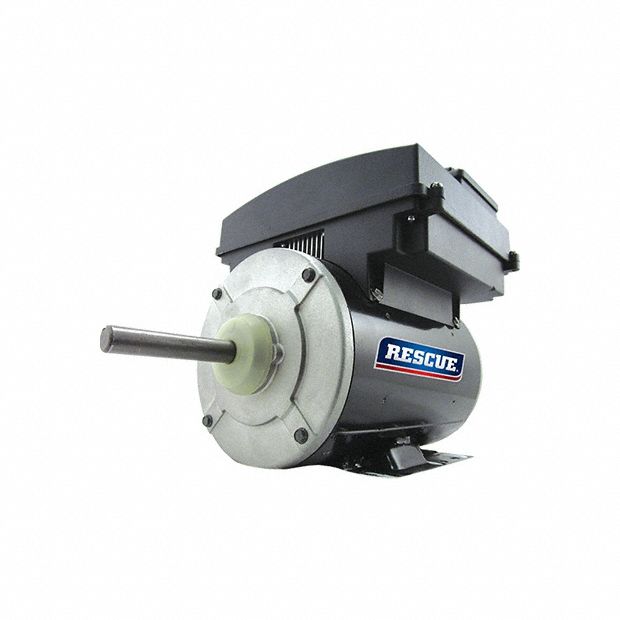

U.s. Motors 3G-OTH-55174 — Technical Specifications
The U.S. MOTORS RESCUE® Series EC Motor (SKU 54ZX79, MPN 6361EO) is a constant RPM ECM condenser fan motor with a 56HZ frame size and TEAO enclosure, rated for outdoor use. It delivers 2-1/2 hp (1,900 W) at 1,200/300 RPM nameplate speed, drawing 6.5-5.8 A full load amps at 208-230V AC, 60 Hz. The motor includes a rigid base mount and an integrated controller with 0-10 Vdc inputs, and is not compatible with external controllers.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Rigid Base, ECM, 2 1/2 hp |
| Brand | U.S. MOTORS |
| Features | Outdoor Use |
| Includes | Rigid Base Mount |
| Frame Size | 56HZ |
| ECM Motor Type | Constant RPM |
| Motor Enclosure | TEAO |
| Rated Horsepower | 2-1/2 hp |
| Horsepower/Wattage | 2-1/2 hp1,900 W |
| External Control Type | Integrated controller 0-10 Vdc Inputs |
| Nameplate RPM @ 60 Hz | 1,200/300 RPM |
| Full Load Amps @ 60 Hz | 6.5-5.8 A |
| Includes User Interface | No |
| Manufacturer Part Number | 6361EO |
| Nameplate Voltage @ 60 Hz | 208-230V AC |
| MOTORS Condenser Fan Motor | RESCUE® EcoTech™ |
| External Controller Compatible | No |
| Compatible With External Controller | Not External Control Compatible |
