U.s. Motors 3G-OTH-55129 — Technical Specifications

Name: U.s. Motors 3G-OTH-55129 U.S. MOTORS Direct Drive Blower Motor: RESCUE® EZ16™, 48Y Frame Size, Belly Band, ECM, Open Air Over (MPN 5861). Key specifications — Brand: U.S. MOTORS; Manufacturer Part Number: 5861; ECM Motor Type: Constant CFM; Features: Field Tunable EZ Interface; Frame Size: 48Y; Full Load Amps @ 60 Hz: 9.3/5.9-5.5 A; 9.4/5.9-5.5 A; Includes User Interface: Yes.
Brand: U.s. Motors

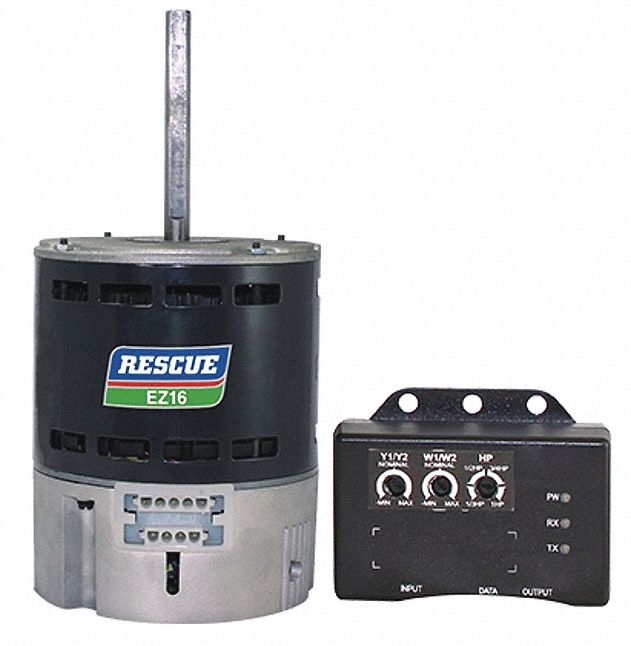

The U.S. MOTORS RESCUE® Series EC Motor (SKU 54ZX77) is a constant CFM ECM motor in a 48Y frame size with an OAO enclosure. It features a Field Tunable EZ Interface and is rated for 3/4 to 1/3 hp (750 W at 3/4 hp), 1,075 RPM at 60 Hz, and 9.3/5.9-5.5 A full load amps at 115/208-230V AC.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Belly Band, ECM, Open Air Over
Brand	U.S. MOTORS
Features	Field Tunable EZ Interface
Frame Size	48Y
ECM Motor Type	Constant CFM
Motor Enclosure	OAO
Rated Horsepower	3/4 to 1/3 hp
Horsepower/Wattage	3/4 hp750 W
Nameplate RPM @ 60 Hz	1,075 RPM
Full Load Amps @ 60 Hz	9.3/5.9-5.5 A
Includes User Interface	Yes
Manufacturer Part Number	5861
Nameplate Voltage @ 60 Hz	115/208-230V AC
MOTORS Direct Drive Blower Motor	RESCUE® EZ16™
