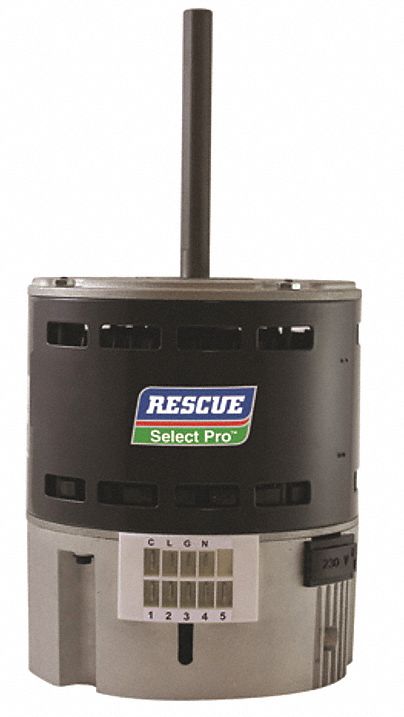

U.s. Motors 3G-OTH-55194 — Technical Specifications
The U.S. MOTORS RESCUE® Series EC Motor (SKU 54ZX60) is a 1 hp constant-torque ECM blower motor in a 48Y frame size with an OAO enclosure. It is pre-programmed with standard settings for replacement use and operates at 1,075 RPM on 115/208-230V AC, drawing 12.4/7.8-7.2 A full-load amps. The motor includes a 115VAC plug and is not compatible with an external controller or user interface.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Belly Band, ECM, 1 hp |
| Brand | U.S. MOTORS |
| Features | pre-programmed with standard settings to use for replacement |
| Includes | 115VAC Plug |
| Frame Size | 48Y |
| ECM Motor Type | Constant Torque |
| Motor Enclosure | OAO |
| Rated Horsepower | 1 hp |
| Horsepower/Wattage | 1 hp800 W |
| Nameplate RPM @ 60 Hz | 1,075 RPM |
| Full Load Amps @ 60 Hz | 12.4/7.8-7.2 A |
| Includes User Interface | No |
| Manufacturer Part Number | 6653 |
| Nameplate Voltage @ 60 Hz | 115/208-230V AC |
| External Controller Compatible | No |
| MOTORS Direct Drive Blower Motor | RESCUE® Select Pro™ |
| Compatible With External Controller | Not External Control Compatible |
