U.s. Motors 3G-OTH-55167 — Technical Specifications

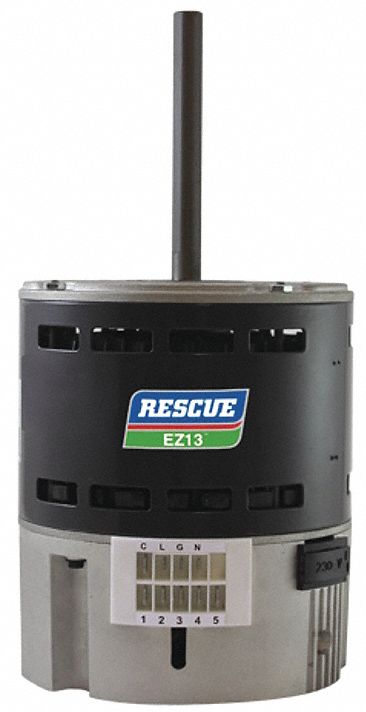

The U.S. MOTORS RESCUE® Series EC Motor (SKU 54ZX57, MPN 5652) is a 48Y frame, constant-torque ECM blower motor with an Open Air Over (OAO) enclosure. It delivers 1 hp (800 W) at 1,075 RPM on 115/208-230V AC, drawing 12.3/7.7-7.2 A full-load amps at 60 Hz. This motor features Auto-Sensing Rotation and includes a 5-speed harness; it is not compatible with an external controller and does not include a user interface.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Belly Band, ECM, Open Air Over |
| Brand | U.S. MOTORS |
| Features | Auto-Sensing Rotation |
| Includes | 5-Speed Harness |
| Frame Size | 48Y |
| ECM Motor Type | Constant Torque |
| Motor Enclosure | OAO |
| Rated Horsepower | 1 hp |
| Horsepower/Wattage | 1 hp800 W |
| Nameplate RPM @ 60 Hz | 1,075 RPM |
| Full Load Amps @ 60 Hz | 12.3/7.7-7.2 A |
| Includes User Interface | No |
| Manufacturer Part Number | 5652 |
| Nameplate Voltage @ 60 Hz | 115/208-230V AC |
| External Controller Compatible | No |
| MOTORS Direct Drive Blower Motor | RESCUE® EZ13™ |
| Compatible With External Controller | Not External Control Compatible |
