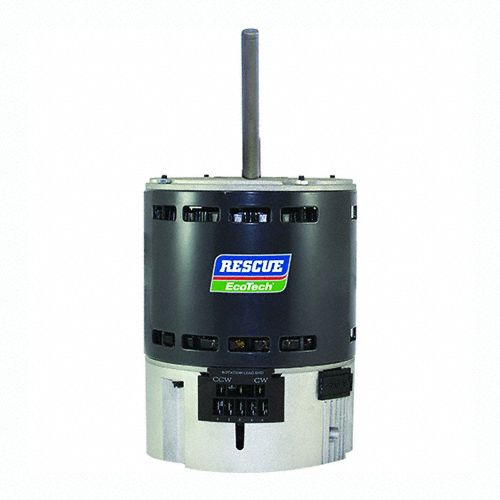

U.s. Motors 3G-OTH-55150 — Technical Specifications
The U.S. MOTORS RESCUE® Series EC Motor (SKU 54ZX55, MPN 5552ET) is a 48Y frame, constant RPM ECM motor rated at 1 hp (1/2 hp at 800 W) with a nameplate speed of 1,075 RPM at 60 Hz. It operates on 115/208-230V AC, drawing 11.5/6.9 A full load amps, and features a continuous low fan speed option. This OAO-enclosed motor includes a reversing harness and is designed as a replacement for PSC outdoor condenser fan motors.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Belly Band, ECM, 11.5/6.9 A |
| Brand | U.S. MOTORS |
| Features | Continuous Low Fan speed option |
| Includes | Reversing Harness |
| Frame Size | 48Y |
| ECM Motor Type | Constant RPM |
| Motor Enclosure | OAO |
| Rated Horsepower | 1 hp |
| Horsepower/Wattage | 1/2 hp800 W |
| For Motor Replacement | PSC Outdoor Condenser Fan Motor |
| Nameplate RPM @ 60 Hz | 1,075 RPM |
| Full Load Amps @ 60 Hz | 11.5/6.9 A |
| Includes User Interface | No |
| Manufacturer Part Number | 5552ET |
| Nameplate Voltage @ 60 Hz | 115/208-230V AC |
| External Controller Compatible | No |
| MOTORS Direct Drive Blower Motor | RESCUE® EcoTech™ |
| Compatible With External Controller | Not External Control Compatible |
