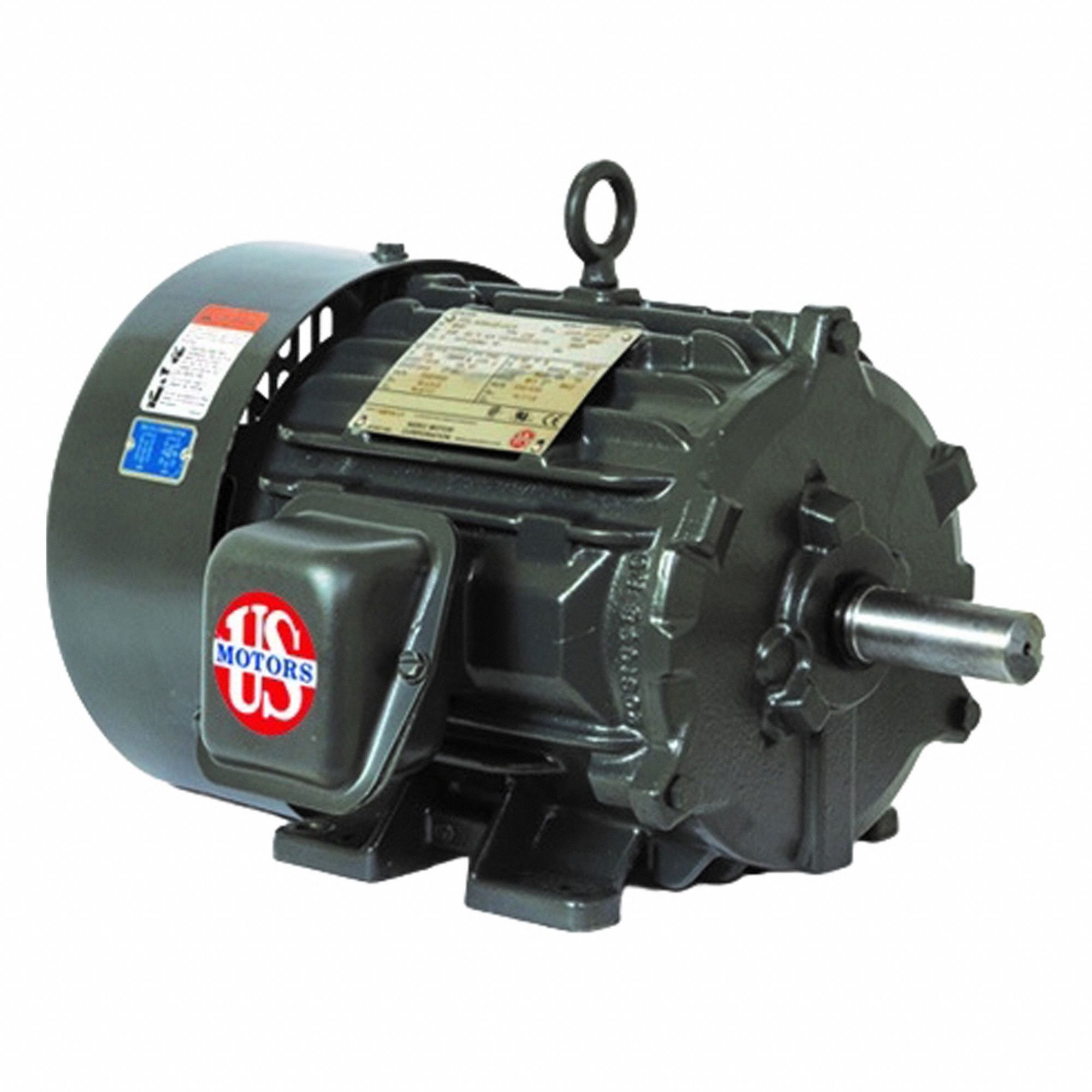

U.s. Motors 3G-OTH-75290 — Technical Specifications
The U.S. MOTORS HD10P1E is a 10 hp Rigid Base 3-Phase General Purpose AC Motor with a TEFC enclosure. It operates at 3,528 RPM and 230V AC at 60 Hz, with a full load current of 23.6/11.8 A.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Totally Enclosed Fan Cooled, 10 hp, 3,528 RPM |
| Brand | U.S. MOTORS |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3,528 RPM |
| Manufacturer Part Number | HD10P1E |
| Full Load Current @ 60 Hz | 23.6/11.8 A |
| Nameplate Voltage @ 60 Hz | 230V AC |
| MOTORS General Purpose Motor | Flange Mount |
