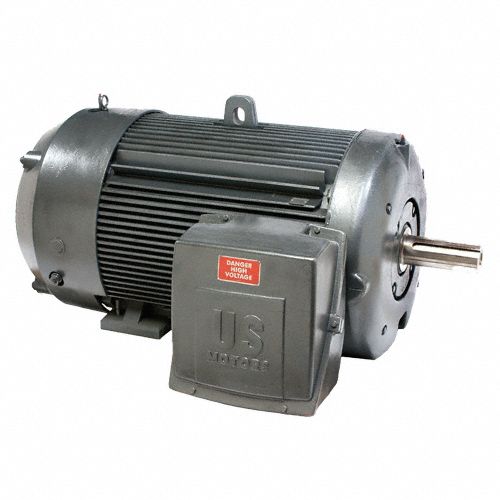

U.s. Motors 3G-OTH-68535 — Technical Specifications

Name: U.s. Motors 3G-OTH-68535 U.S. MOTORS General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 250 hp, 1,190 RPM (MPN C250P3WB). Key specifications — Brand: U.S. MOTORS; Nameplate Voltage @ 60 Hz: 2,300/4,000V AC; Full Load Current @ 60 Hz: 35.0/35.0 A; Nameplate RPM @ 60 Hz: 1,190 RPM; Motor Enclosure: TEFC.
Brand: U.s. Motors

The U.S. MOTORS Rigid Base 3-Phase General Purpose AC Motor (SKU 263X47, MPN C250P3WB) is a 250 hp, TEFC-enclosed motor with a nameplate RPM of 1,190 RPM at 60 Hz. It operates at dual nameplate voltages of 2,300/4,000V AC and draws a full load current of 35.0/35.0 A at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Totally Enclosed Fan Cooled, 250 hp, 1,190 RPM
Brand	U.S. MOTORS
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,190 RPM
Manufacturer Part Number	C250P3WB
Full Load Current @ 60 Hz	35.0/35.0 A
Nameplate Voltage @ 60 Hz	2,300/4,000V AC
MOTORS General Purpose Motor	Rigid Base Mount
