Tsubaki 3G-OTH-127083 — Technical Specifications

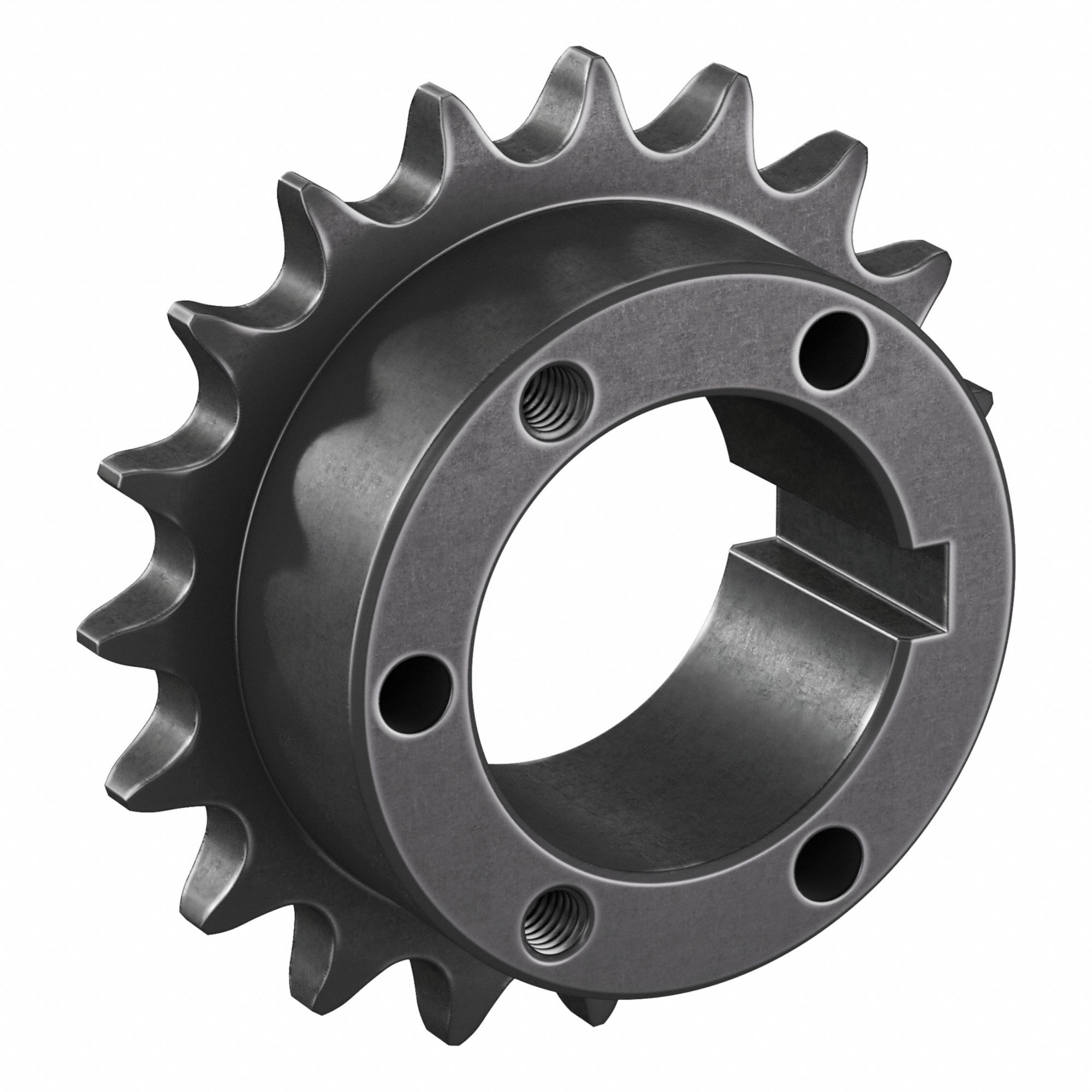

The TSUBAKI Sprocket is a Size 50 bushed-bore roller chain sprocket designed for 50 chain. It features 19 teeth, a 3.798-inch pitch diameter, and a 4.12-inch outside diameter, constructed from steel. This model (MPN 50P19) requires a P1 bushing series for installation.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Steel |
| Brand | TSUBAKI |
| Teeth | 19 |
| Pitch Dia | 3.798 in |
| Outside Dia | 4.12 in |
| Required Bushing Series | P1 |
| Manufacturer Part Number | 50P19 |
