Tsubaki 3G-OTH-122407 — Technical Specifications

Name: Tsubaki 3G-OTH-122407 TSUBAKI Keyless Bushing: For 1 3/4 in Shaft Dia, 2 15/16 in OD, 0.945 in Wd, Carbon Steel (MPN PL1L). Key specifications — System of Measurement: Inch; Keyless Bushing Type: Multi-Screw Locking Assembly; Flange Type: None; Brand: TSUBAKI.
Brand: Tsubaki

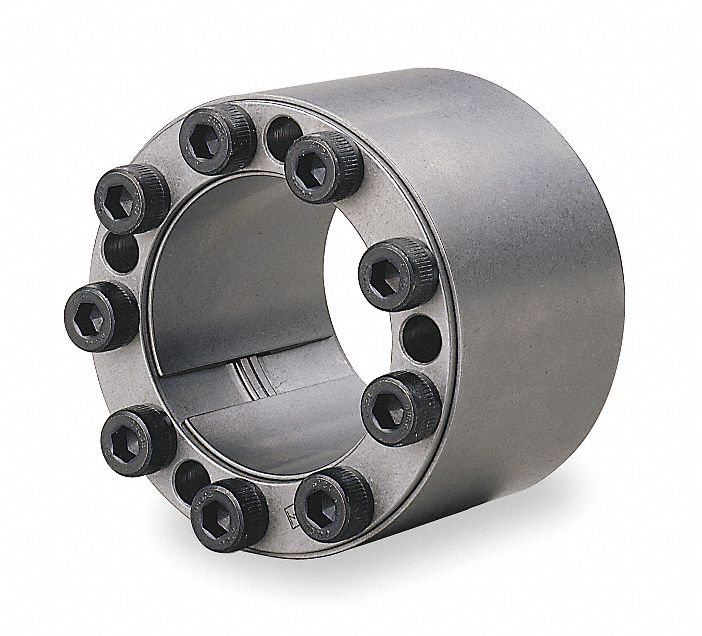

The TSUBAKI Keyless Bushing (MPN PL1L) is a multi-screw locking assembly keyless bushing designed for a 1 3/4 in shaft diameter. It features a 2 15/16 in outer diameter, 0.945 in width, and is made of carbon steel with no flange. This inch-system component provides a keyless shaft-to-hub connection using multiple locking screws.

View Product & Quote

Technical Specifications

Parameter	Value
OD	2 15/16 in
Wd	0.945 in
Type	Carbon Steel
Brand	TSUBAKI
Flange Type	None
Keyless Bushing Type	Multi-Screw Locking Assembly
System Of Measurement	Inch
Manufacturer Part Number	PL1L
