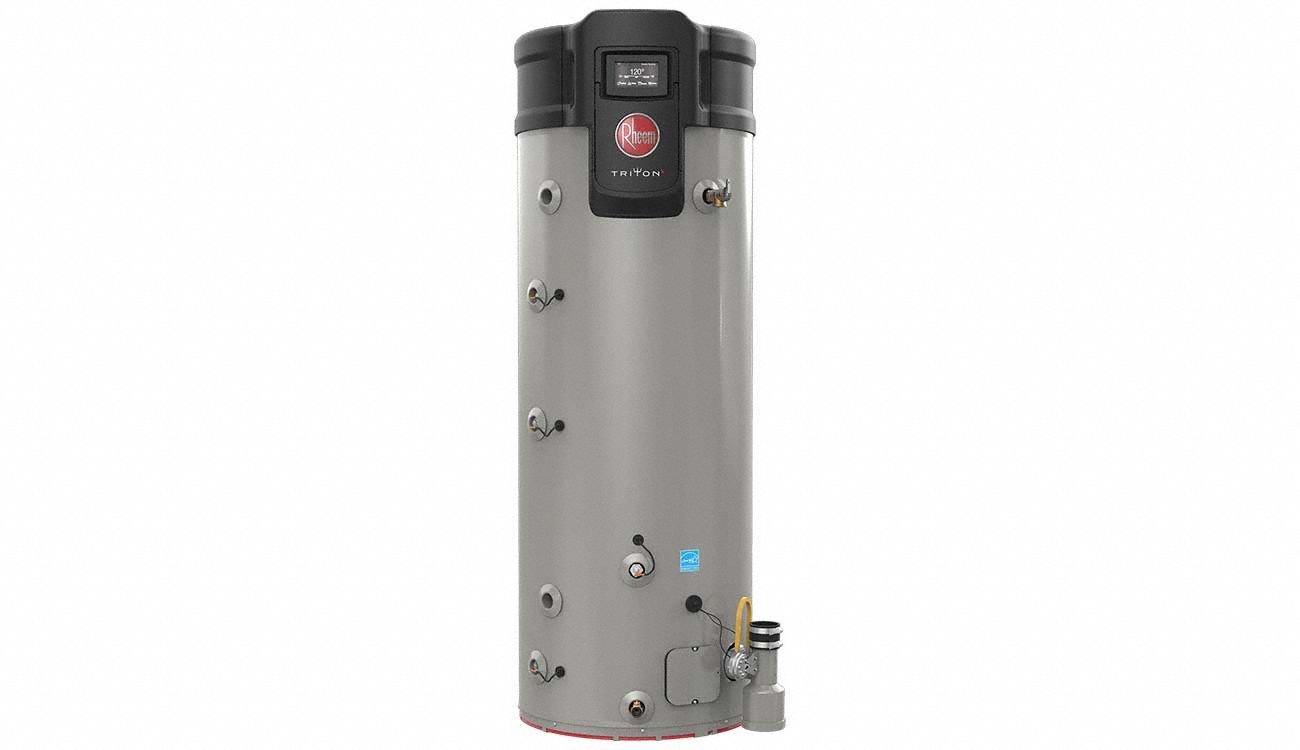

Triton 3G-OTH-452268 — Technical Specifications
The TRITON Commercial Gas Water Heater (Natural Gas) is a general-purpose, condensing power-vent water heater with a 50-gallon nominal tank capacity and a 76,000 BTU input. It includes a California Low NOx Compliant burner, operates on 110V, and meets US CSA (Star) standards. Key specifications include a recovery rate of 179 gph @ 50°F, a maximum recovery flow rate of 223 gph @ 40°F, a 2-inch vent connection, and side water connections with included shutoff and T&P relief valves.
Technical Specifications
| Parameter | Value |
|---|---|
| Ht | 64.25 in |
| BTU | 76,000 |
| Type | Low NOx, 50 gal |
| Brand | TRITON |
| Market | Commercial |
| Low NOx | Yes |
| Fuel Type | Natural Gas |
| Standards | US CSA (Star) |
| Vent Type | Power Vent |
| Condensing | Yes |
| Included Valves | Shutoff |
| Display Sell UOM | EA |
| Low NOx Compliant | Includes California Low NOx Compliant Burner |
| Operating Voltage | 110V |
| Included Valve Type | T & P Relief |
| Recovery Rate @ Rise | 179 gph @ 50°F |
| Vent Connection Size | 2 in |
| Nominal Tank Capacity | 50 gal |
| Manufacturer Part Number | GHE50SS-76 / 700593 |
| Water Connection Location | Side |
| Maximum Recovery Flow Rate | 223 gph @ 40°F |
