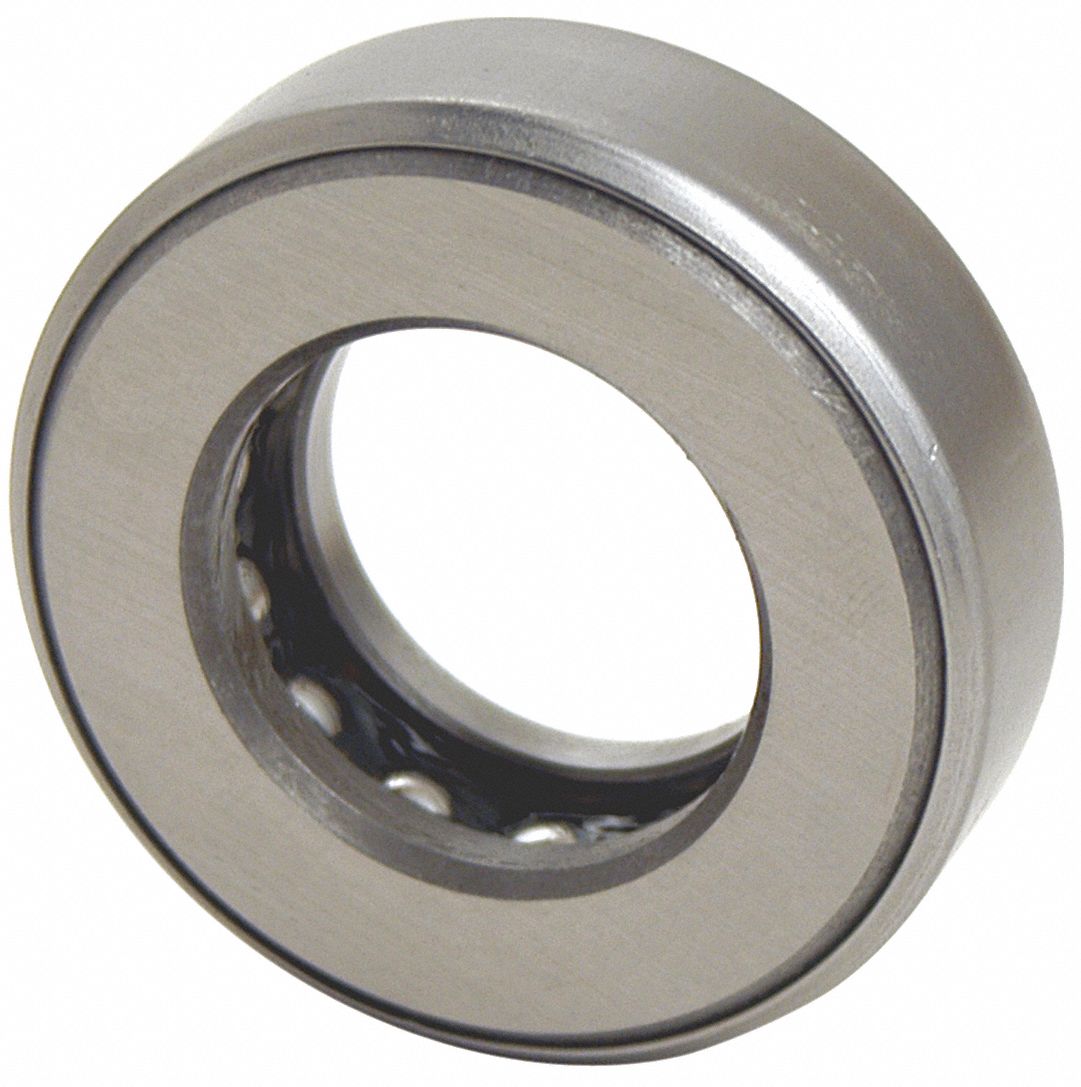

Tritan 3G-OTH-110299 — Technical Specifications
The TRITAN D39 1/2 is an inch-system banded ball thrust bearing from the D Series, featuring a 3-inch bore diameter, 4 19/32-inch outside diameter, and 1-inch overall width with a grooved design. It is constructed with AISI 52100 ball material grade and has a maximum speed of 950 RPM with grease lubrication.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Grooved |
| Brand | TRITAN |
| Bore Dia | 3 in |
| Overall Wd | 1 in |
| Outside Dia | 4 19/32 in |
| Maximum Speed | 950 RPM Grease |
| Bearing Series | D Series |
| Ball Material Grade | AISI 52100 |
| Thrust Bearing Type | Banded Ball Thrust Bearing |
| System Of Measurement | Inch |
| Bearing Industry Number | D39-1/2 |
| Manufacturer Part Number | D39-1/2 |
