Tritan 3G-OTH-110217 — Technical Specifications

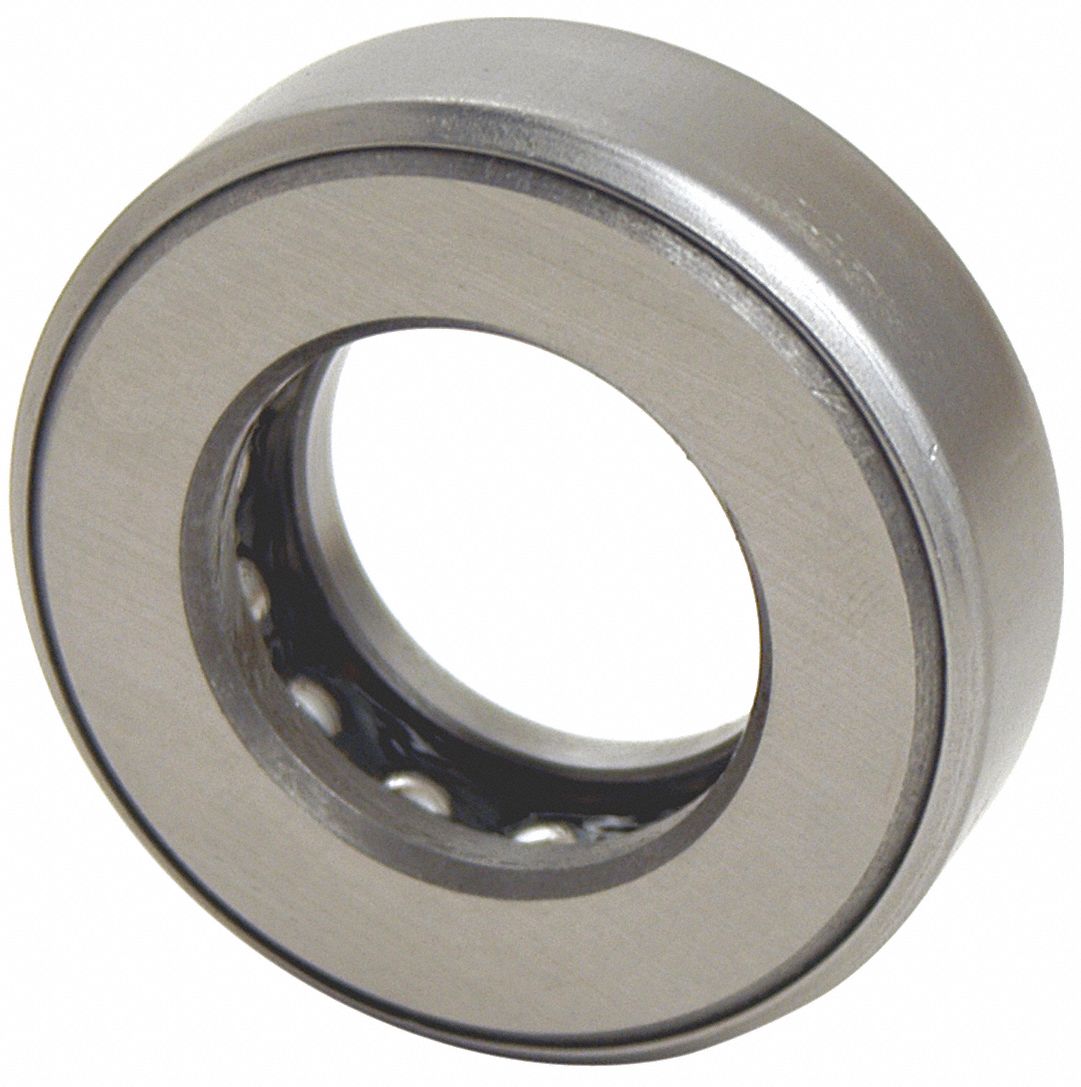

The TRITAN D36 is an inch-system banded ball thrust bearing from the D Series, featuring a 2 11/16 in bore diameter, 4 11/32 in outside diameter, and 1 in overall width. It is constructed with AISI 52100 steel balls and has a maximum speed of 975 RPM with grease lubrication.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Steel |
| Brand | TRITAN |
| Bore Dia | 2 11/16 in |
| Overall Wd | 1 in |
| Outside Dia | 4 11/32 in |
| Maximum Speed | 975 RPM Grease |
| Bearing Series | D Series |
| Ball Material Grade | AISI 52100 |
| Thrust Bearing Type | Banded Ball Thrust Bearing |
| System Of Measurement | Inch |
| Bearing Industry Number | D36 |
| Manufacturer Part Number | D36 |
