Tritan 3G-OTH-110521 — Technical Specifications

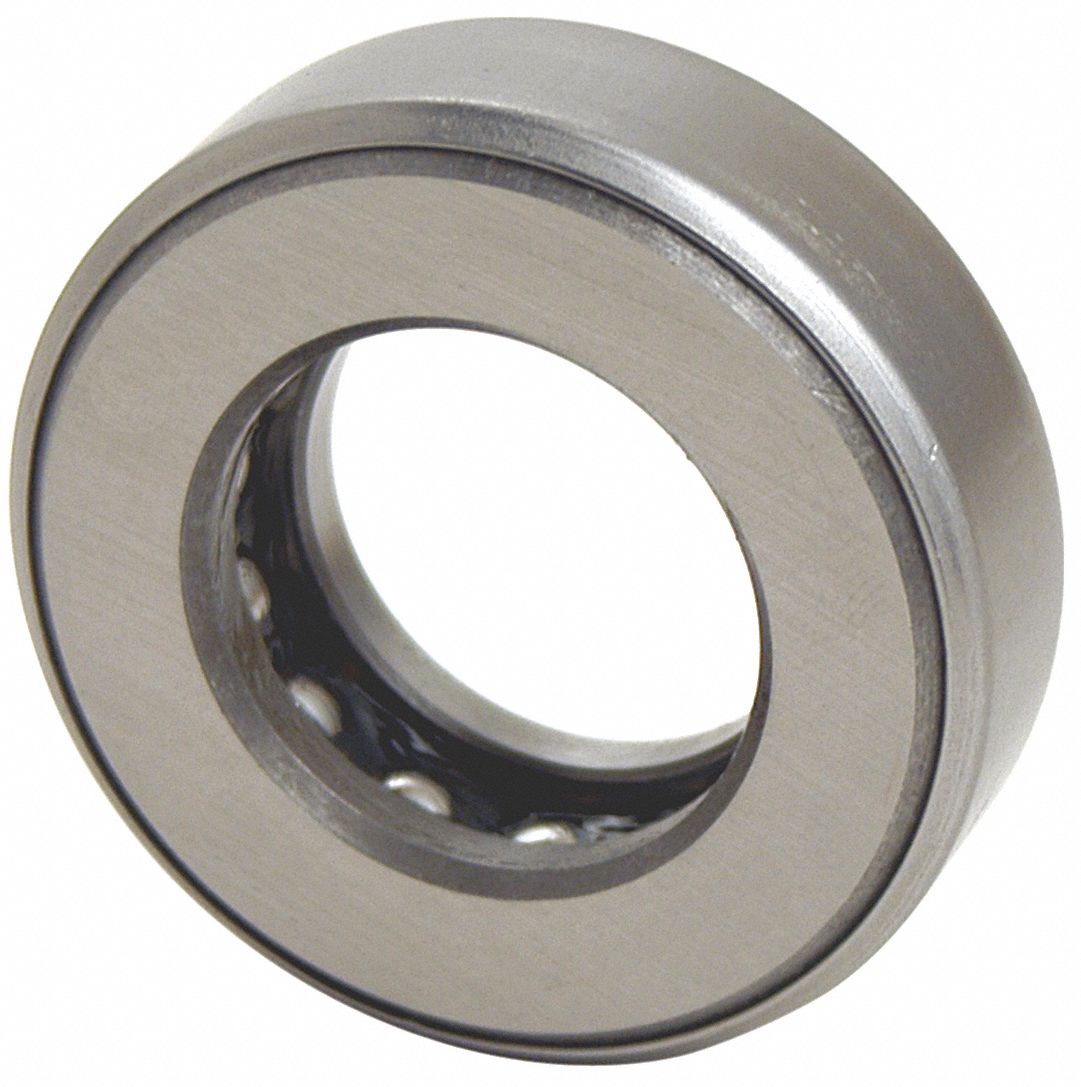

The TRITAN D27 is an inch-system banded ball thrust bearing from the D Series, featuring a 2 1/8 in bore diameter, 3 19/32 in outside diameter, and 0.813 in overall width. It is constructed with AISI 52100 ball material grade and has a maximum speed of 1,800 RPM in oil.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | TRITAN |
| Bore Dia | 2 1/8 in |
| Overall Wd | 0.813 in |
| Outside Dia | 3 19/32 in |
| Maximum Speed | 1,800 RPM Oil |
| Bearing Series | D Series |
| Ball Material Grade | AISI 52100 |
| Thrust Bearing Type | Banded Ball Thrust Bearing |
| System Of Measurement | Inch |
| Bearing Industry Number | D27 |
| Manufacturer Part Number | D27 |
