Tritan 3G-OTH-109929 — Technical Specifications

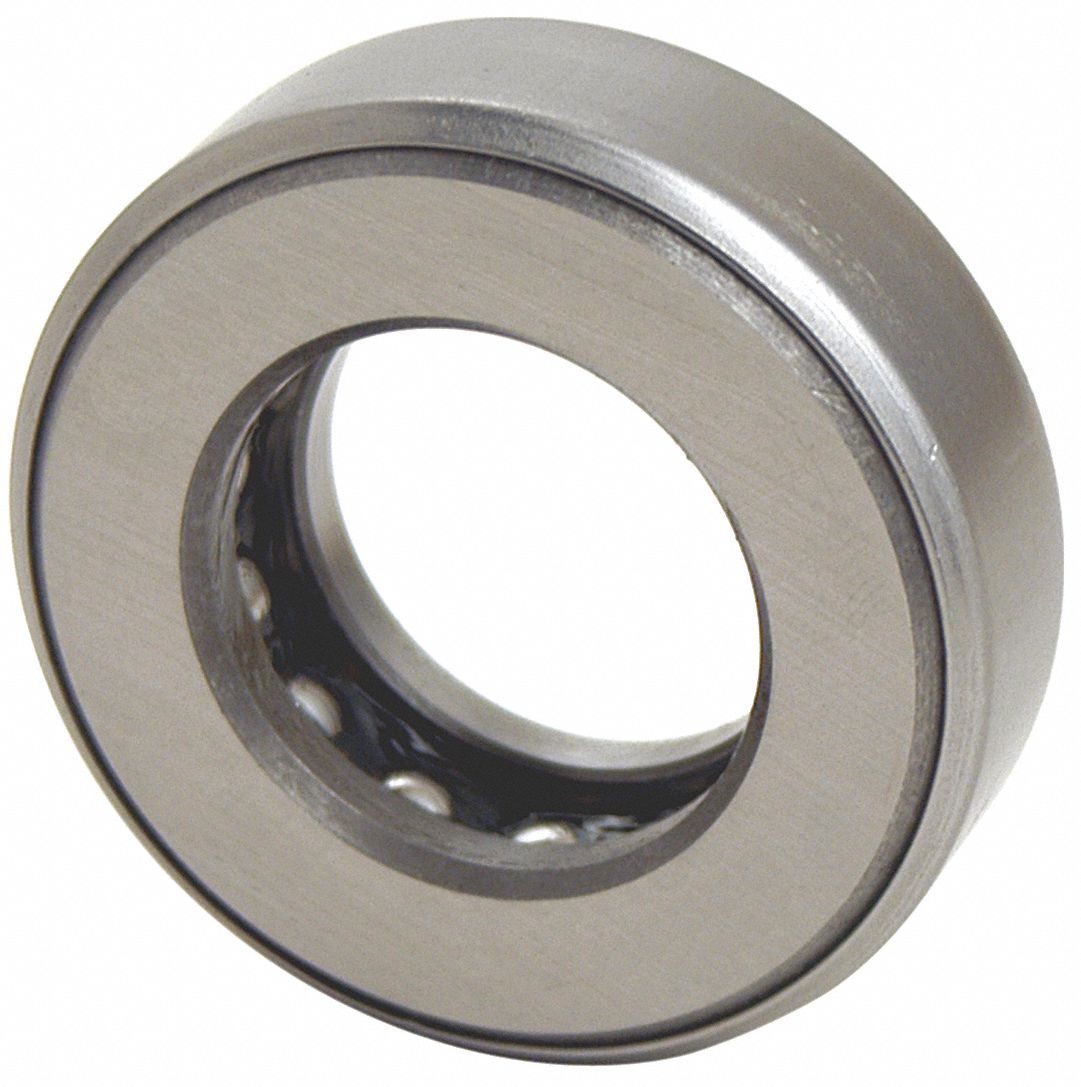

The TRITAN D16 is an inch-system banded ball thrust bearing from the D Series, featuring a 1 7/16 in bore diameter, 2 15/32 in outside diameter, and 0.625 in overall width. It is constructed with AISI 52100 ball material and has a maximum speed of 1,800 RPM with grease lubrication.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | TRITAN |
| Bore Dia | 1 7/16 in |
| Overall Wd | 0.625 in |
| Outside Dia | 2 15/32 in |
| Maximum Speed | 1,800 RPM Grease |
| Bearing Series | D Series |
| Ball Material Grade | AISI 52100 |
| Thrust Bearing Type | Banded Ball Thrust Bearing |
| System Of Measurement | Inch |
| Bearing Industry Number | D16 |
| Manufacturer Part Number | D16 |
