Tritan 3G-OTH-109012 — Technical Specifications

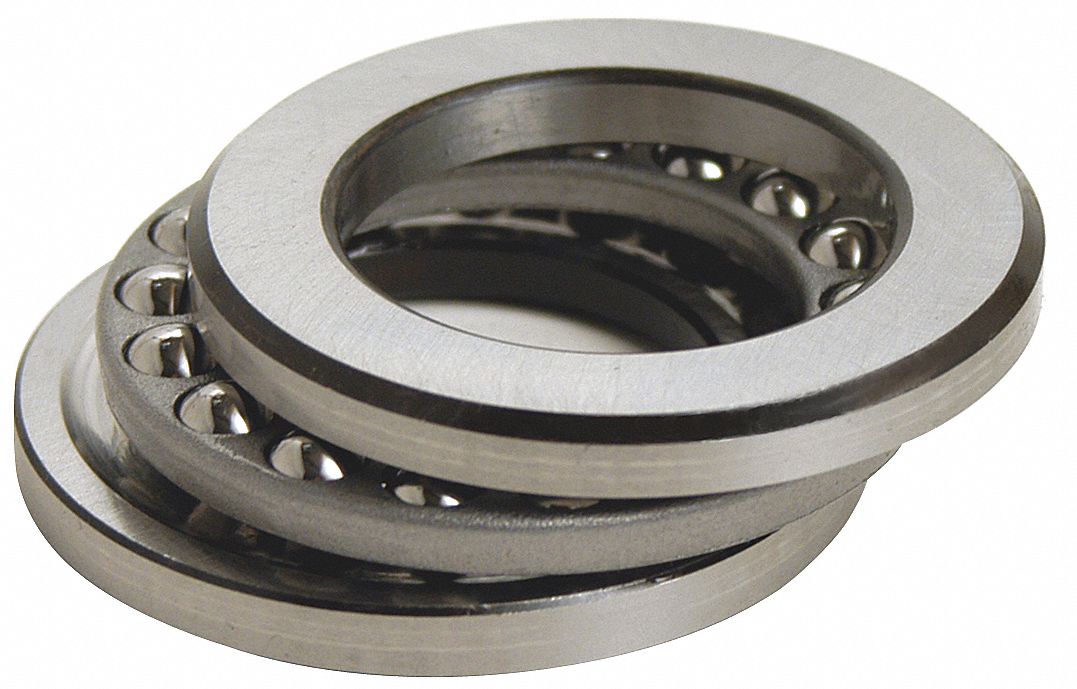

The TRITAN GT34 is an inch-system separable grooved-race ball thrust bearing from the GT Series, featuring a 2 9/16 in bore diameter, 3 31/32 in outside diameter, and 0.813 in overall width. It is constructed with AISI 52100 ball material and has a maximum speed of 3,200 RPM.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | TRITAN |
| Bore Dia | 2 9/16 in |
| Overall Wd | 0.813 in |
| Outside Dia | 3 31/32 in |
| Maximum Speed | 3,200 RPM |
| Bearing Series | GT Series |
| Ball Material Grade | AISI 52100 |
| Thrust Bearing Type | Separable Ball Thrust Bearing |
| System Of Measurement | Inch |
| Bearing Industry Number | GT34 |
| Manufacturer Part Number | GT34 |
