Tritan 3G-OTH-108653 — Technical Specifications

Name: Tritan 3G-OTH-108653 TRITAN Ball Thrust Bearing: W1 1/8, 1 1/8 in Bore Dia, 1 57/64 in Outside Dia, 0.625 in Overall Wd (MPN W1-1/8). Key specifications — Thrust Bearing Type: Separable Ball Thrust Bearing; Ball Material Grade: AISI 52100; System of Measurement: Inch; Bearing Industry Number: W1-1/8; Maximum Speed: 4,000 RPM Grease; Brand: TRITAN; Bearing Series: W Series.
Brand: Tritan

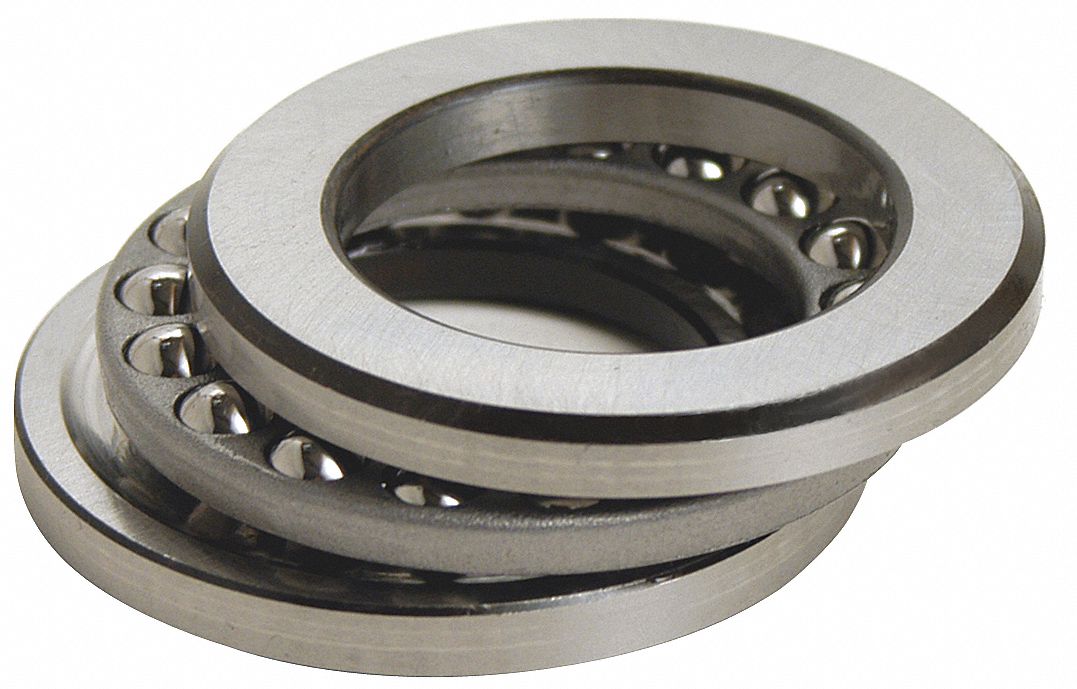

The TRITAN W1 1/8 is a separable grooved-race ball thrust bearing from the W Series, with a 1 1/8 in bore diameter, 1 57/64 in outside diameter, and 0.625 in overall width. It features AISI 52100 ball material grade and a maximum speed of 4,000 RPM grease.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	TRITAN
Bore Dia	1 1/8 in
Overall Wd	0.625 in
Outside Dia	1 57/64 in
Maximum Speed	4,000 RPM Grease
Bearing Series	W Series
Ball Material Grade	AISI 52100
Thrust Bearing Type	Separable Ball Thrust Bearing
System Of Measurement	Inch
Bearing Industry Number	W1-1/8
Manufacturer Part Number	W1-1/8
