Tritan 3G-OTH-108997 — Technical Specifications

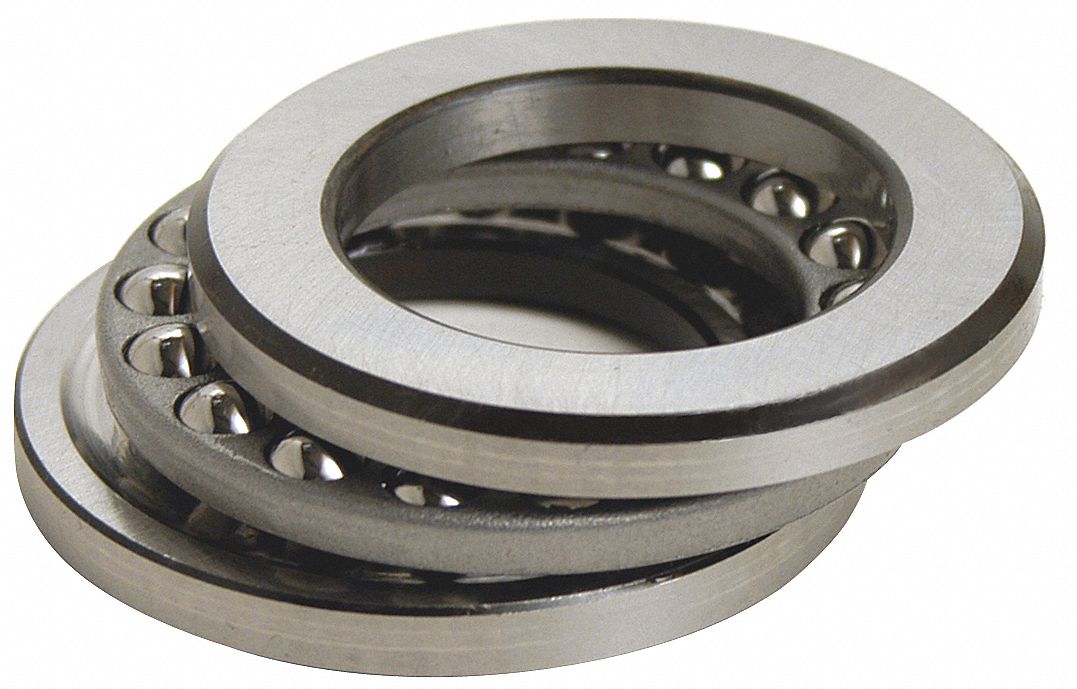

The TRITAN W3/4 is an inch-system separable grooved-race ball thrust bearing from the W Series, featuring a 3/4-inch bore diameter, a 1 33/64-inch outside diameter, and a 0.625-inch overall width. It is constructed with AISI 52100-grade ball material and has a maximum speed rating of 5,600 RPM with grease lubrication. This bearing is designed for axial load applications requiring a separable design.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | TRITAN |
| Bore Dia | 3/4 in |
| Overall Wd | 0.625 in |
| Outside Dia | 1 33/64 in |
| Maximum Speed | 5,600 RPM Grease |
| Bearing Series | W Series |
| Ball Material Grade | AISI 52100 |
| Thrust Bearing Type | Separable Ball Thrust Bearing |
| System Of Measurement | Inch |
| Bearing Industry Number | W3/4 |
| Manufacturer Part Number | W3/4 |
