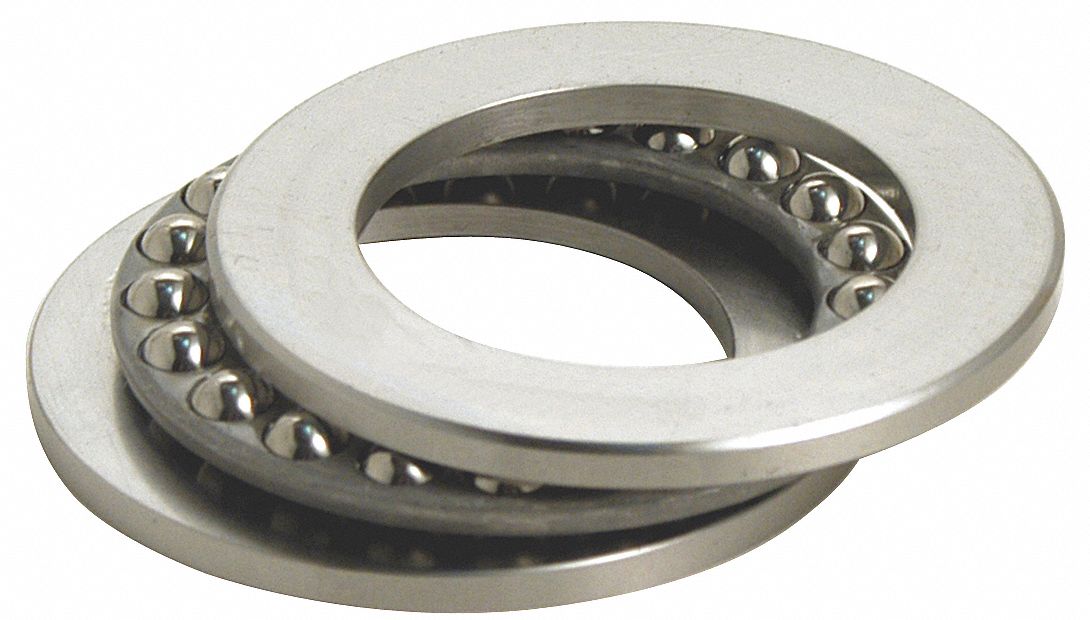

Tritan 3G-OTH-109105 — Technical Specifications
The TRITAN EW3/4 is a separable flat-race ball thrust bearing from the EW Series, with a 3/4-inch bore diameter, 1 5/16-inch outside diameter, and 0.281-inch overall width. It features AISI 52100 ball material grade and a maximum speed of 7,500 RPM in oil lubrication.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Flat |
| Brand | TRITAN |
| Bore Dia | 3/4 in |
| Overall Wd | 0.281 in |
| Outside Dia | 1 5/16 in |
| Maximum Speed | 7,500 RPM Oil |
| Bearing Series | EW Series |
| Ball Material Grade | AISI 52100 |
| Thrust Bearing Type | Separable Ball Thrust Bearing |
| System Of Measurement | Inch |
| Bearing Industry Number | EW3/4 |
| Manufacturer Part Number | EW3/4 |
